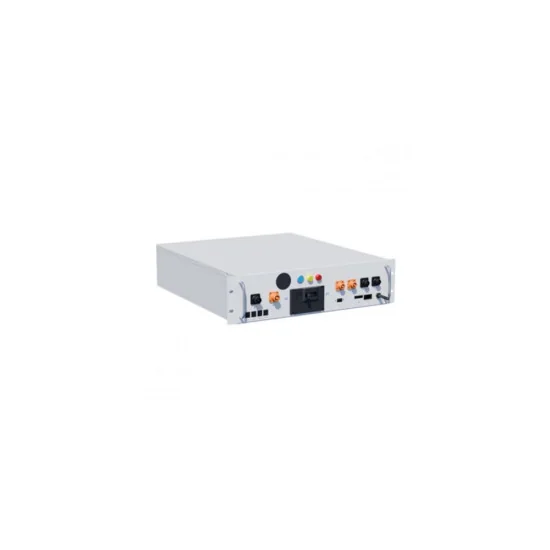

Control Box (Control Unit) DEYE BOSAA HVB 750 V / 160 A-EU - HV
2 photosProduct typeControl and backup
ManufacturerDeye
CategoryControl and backup
Description
Control and backup Deye, reference HVB 750 V / 160 A-EU.
Rated voltage: 38,4. Technology: LiFePO4. Protection: IP20. Dimensions: 601.5 × 520 × 135 Weight: Approximately 70.
This product does not include its own storage capacity.
The product is the control unit. The table includes examples of BOSAA systems with 7, 13 or 21 modules; these are not batteries included in the unit price of control.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- HVB 750V/160A-EU
Technical specifications
- Cell Chemistry
- LiFePO4
- Energie Modul (kWh)
- 7.68
- Nominal Voltage Module (V)
- 38.4
- Module Capacity (Ah)
- 200
- Module Dimensions (Width / Depth / Height, mm)
- 601.5 × 520 × 135
- Weight Module (kg)
- Aproximativ 70
- Battery Plugin Number In Batch (Optional)
- Varianta 1: 7; Varianta 2: 13; Varianta 3: 21
- Nominal Voltage System (V)
- Varianta 1: 268,8; Varianta 2: 499,2; Varianta 3: 806.4
- Operating voltage System (V)
- Varianta 1: 235,2~306,6; Varianta 2: 436,8~569,4; Varianta 3: 705,6~919.8
- Energy System (kWh)
- Varianta 1: 53,76; Varianta 2: 99,84; Varianta 3: 161.28
- Useful Energy System (kWh)
- Varianta 1: 48,38; Varianta 2: 89,85; Varianta 3: 145.15
- Working temperature (° C)
- Loading: 0 ~ 55 / Download: -20 ~ 55
- Indicator Stare
- Yellow: High Active / Red Voltage: Battery System Alarm
- Port Comunicare
- CAN2.0
- Umiditate
- 5%~85%RH
- Maximum altitude
- ≤3000m
- Carcase Protection Degree
- IP20
- System dimensions (Width / Depth / Height, mm)
- Varianta 1: 1900×610×610; Varianta 2: 2350×610×610; Varianta 3: 1900×610×610
- Weight System (kg)
- Varianta 1: 558; Varianta 2: 985; Varianta 3: 1586
- Installation location
- Mounting in Rack
- Storage temperature (° C)
- 0~35
- Deeply Recommended Download
- 90%
- Lifetime (Cycles)
- 25±2°C, 0.5C/0.5C, EOL70% ≥6000 cicluri
- Certification
- EC / IEC62619 / IEC62040 / UN38.3 / VDE-2510
