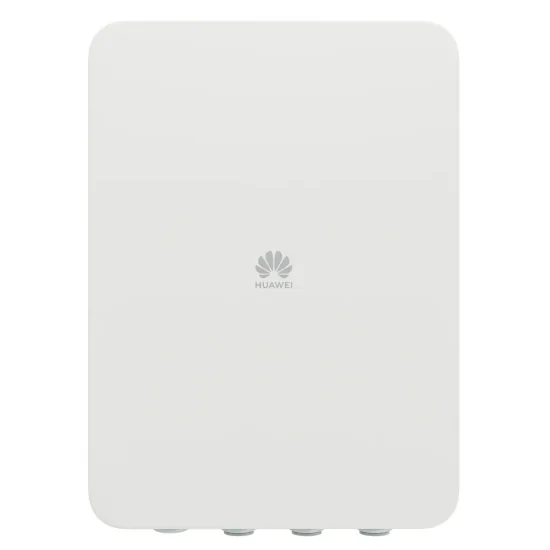

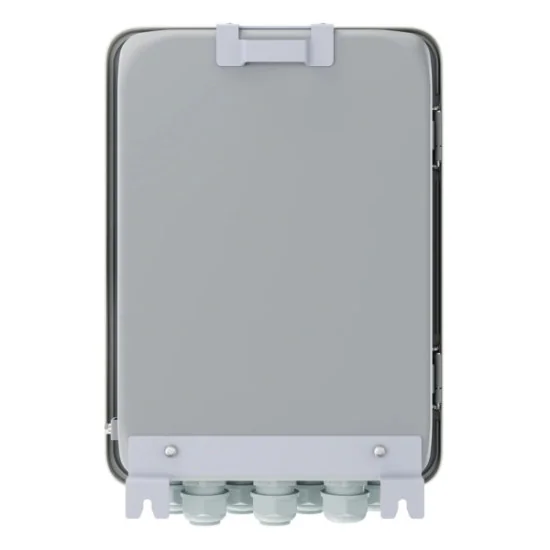

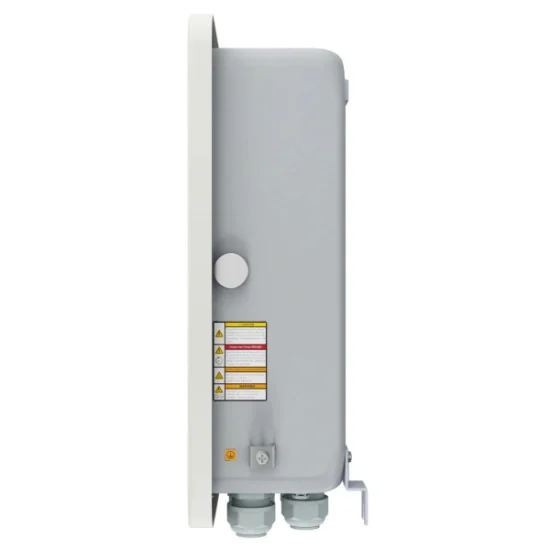

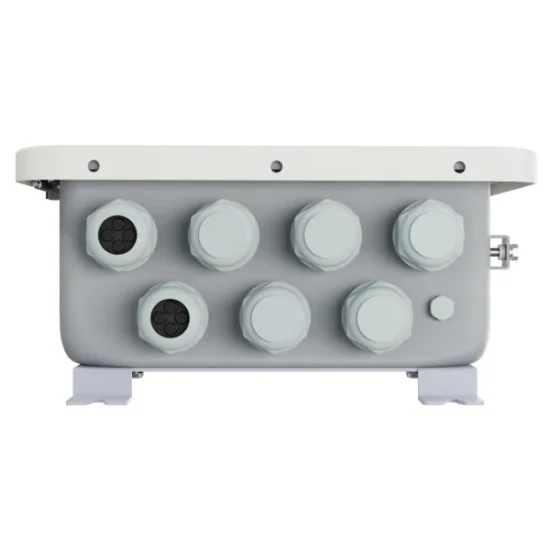

Huawei SMARTGUARD-63A-S0 - single-phase backup box, energy backup system
5 photosProduct typeControl and backup
ManufacturerHuawei
CategoryControl and backup
Description
Control and backup Huawei, reference SMARTGUARD-63A-S0.
Dimensions: 485 mm × 150 mm × 355 mm. Weight: ≤ 14 kg.
This product does not include its own storage capacity.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SMARTGUARD-63A-S0
General specifications
- Dimensions (L x Q x l)
- 485 mm × 150 mm × 355 mm
- Weight
- ≤14 kg
- Zgomot
- 29 dB
- Cooling mode
- Free cooling
- Maximum operating altitude
- 4000 m (derived when the altitude is greater than 2000 m)
- Operating temperature
- - 25 ° C to +50 ° C
- IP protection class
- IP55
Performance specifications
- Inverter port current
- 60 A
- Current of the reserve supply port
- 63 A
- Non-reserve port current
- 63 A
- Network port current
- 63 A
- Voltage AC nominal
- 220 V/230 V/240 V, L / N + PE
- Start mode
- Start on the network side or on the inverter side
- Operating mode
- On- or off- or grid
- Low Voltage Ride Through (LVRT)
- Suportat
- On / Off-grid switching time (Quick Switch)
- ≤20 ms
- home energy management system (EMMA)
- Disponibil
Display and communication
- Display
- LED flags; WLAN + Application
- RS485
- Suportat
- WiFi integrat
- Suportat
