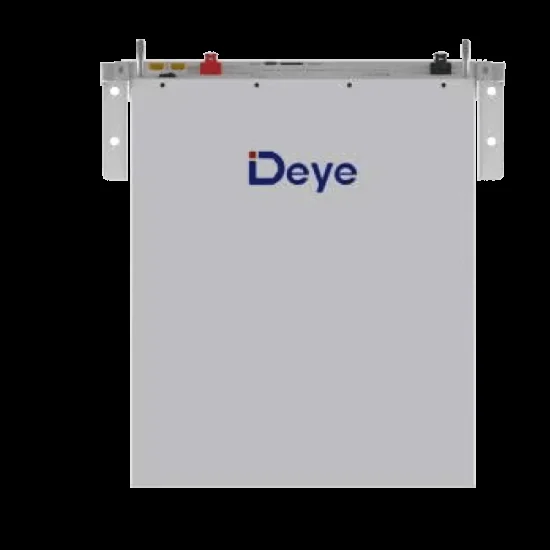

Battery Deye SE-G5.1PRO-B, 5.12 kWh low-voltage
3 photosListed capacity5.12 kWh
ManufacturerDeye
CategoryBattery
Description
Battery Deye, reference SE-G5.1PRO-B. Capacity of the configuration listed: 5.12 kWh.
Rated voltage: 51.2 V. Technology: LiFePO4, Lithium Iron Phosphate. Protection: IP20. Dimensions: 440 × 133 × 540 mm. Weight:
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SE-G5.1PRO-B
Product configuration
- Configuration capacity listed
- 5.12 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Model
- SE-G5.1 Pro-B
- Battery chemistry
- LiFePO₄ (Lithium Iron Phosphate)
- Nominal capacity
- 100 Ah
- Nominal energy
- 5.12 kWh
- Useful energy
- 4.6 kWh (DC, 90% DOD, test conditions 25 ° C) [1]
- Rated voltage
- 51.2 V
- Operation voltage range
- 43.2 – 57.6 V
- Recommended charge / download current
- 50 A
- Continuous maximum current
- 100 A
- Peak current (2 min, 25 ° C)
- 150 A
- Recommended download depth (DOD)
- 90%
- System scalability
- Up to 64 units in parallel (~ 327 kWh)
- Dimensions (W × H × D)
- 440 × 133 × 540 mm
- approximate weight
- ≈ 45 kg
- Indicator LED
- 5 LED for SOC (20 - 100%), plus 3 LED: operation, alarm, protection
- Carcase protection grade
- IP20
- Operating temperature - loading
- 0 ° C ~ 55 ° C (optional heating: - 20 ° C ~ 55 ° C)
- Operating temperature - download
- –20 °C ~ 55 °C
- Storage temperature
- 0 °C ~ 35 °C
- Relative humidity operation / storage
- 5% – 95%
- Maximum operating altitude
- ≤ 2000 m
- Life Cycles
- ≥ 6000 cicluri (90% DOD, 25 °C, 0.5C/0.5C, 70% EOL)
- Installation mode

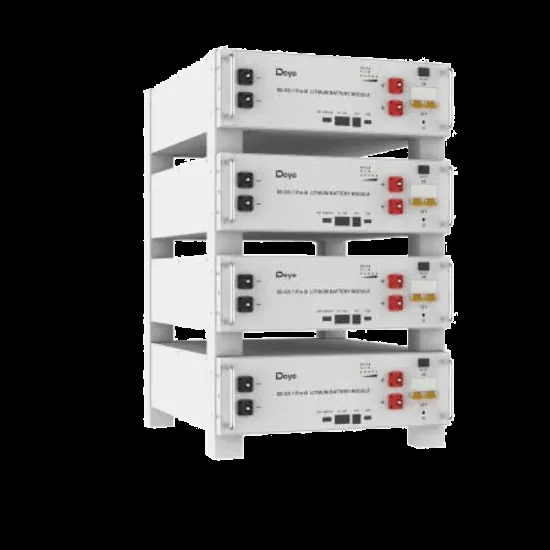

- Wall, floor or rack mounting 19 ″ (cabinet depth ≥ 600 mm)
- Communication ports
- CAN 2.0, RS485
- Guarantee period
- 10 years (or energy throughput 16 MWh @ 70% EOL] [3]
- Certification
- UN38.3, IEC62619, EC, UK, VDE2510-50, IEC 0 -21, FCC UL1973, UL9540A
