Base package and connection cables for Growatt AXE 5.0 L
5 photosProduct typeAccessory
ManufacturerGrowatt
CategoryAccessory
Description
Accessory Growatt, GRW reference GWAXE50LC1BASECB.
Dimensions: 654 × 25 × 353 mm.
This product does not include its own storage capacity.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Included items

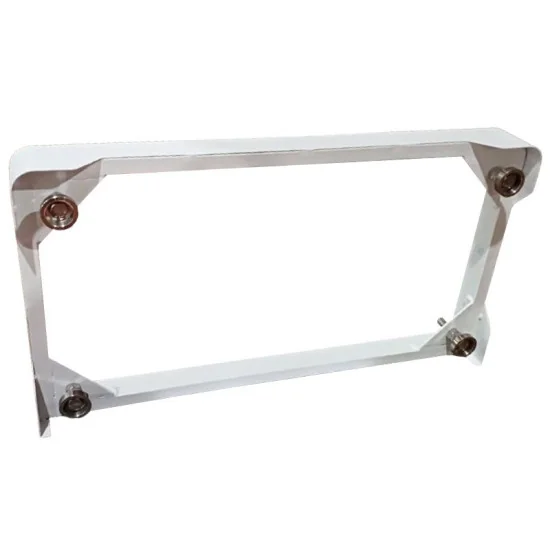

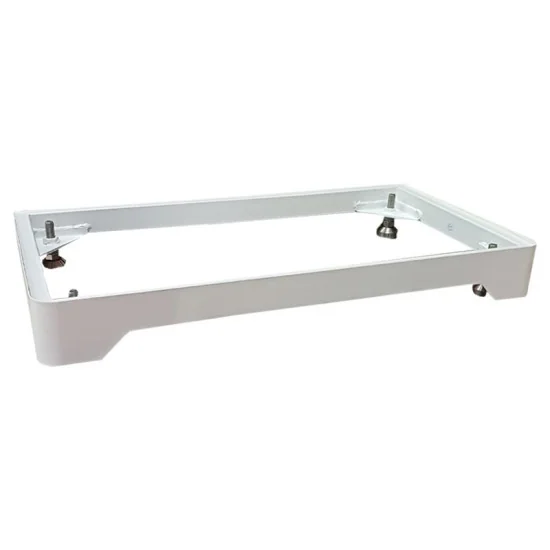

- 1 × base Growatt AXE 5.0 L

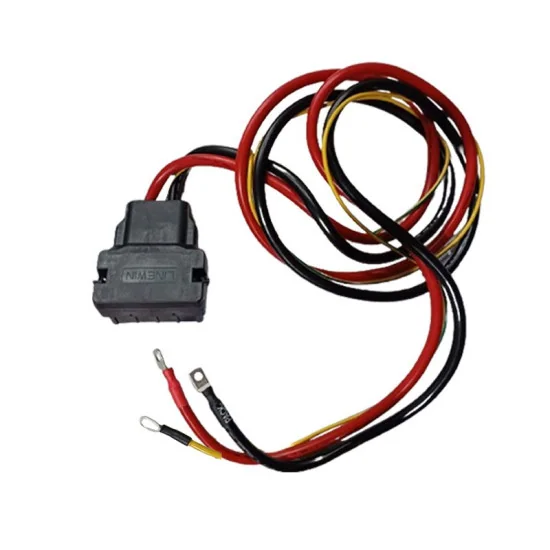

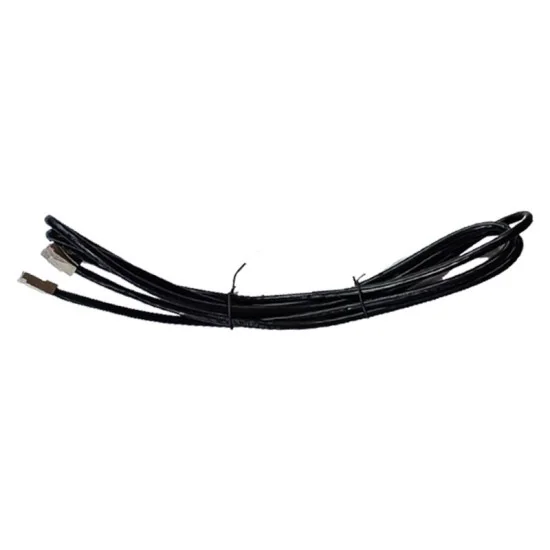

- 1 × set of cables to connect the battery to the inverter
Technical specifications
Identification
- Manufacturer
- Growatt
- Model / reference
- GRW GWAXE50LC1BASECB
Product data
- Basic supported modules
- Up to 10 × AXE 5.0 L
- Base dimensions
- 654 × 25 × 353 mm
- Length of cables
- 2 m
- Conductor section
- 33 mm²
- Maximum working voltage
- 1000 V
- Conexiuni incluse
- Positive, negative, grounding, RS485
Package configuration
- Component included
- 1 × base Growatt AXE 5.0 L
- Component included
- 1 × set of cables to connect the battery to the inverter
PDF documents
The battery system installation guide covers cable connections and accessory installation. Confirm the supplied cable length and connector type for your configuration.
