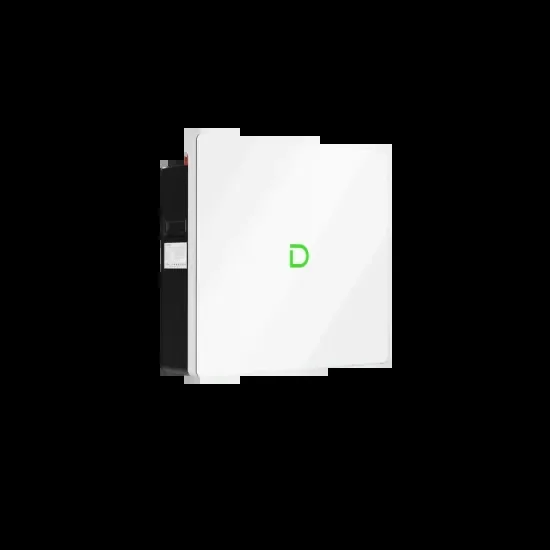

Battery Dyness Powerbox G2, 10.24 kWh, 51.2 V, LiFePO4
2 photosListed capacity10.24 kWh
ManufacturerDyness
CategoryBattery
Description
Battery Dyness, Powerbox reference G2. Capacity of the configuration listed: 10.24 kWh.
Rated voltage: 51.2 V. Technology: LiFePO4 (Lithium Iron Phosphate). Protection: IP65. Dimensions: 710 × 165 × 640 mm. Weight: 96 kg.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Dyness
- Model / reference
- Powerbox G2
Product configuration
- Configuration capacity listed
- 10.24 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Model
- Powerbox G2
- Battery type
- LiFePO4 (Lithium Iron Phosphate)
- Nominal battery energy
- 10.24 kWh
- Energie utilizabila
- 9.728 kWh (DC, DOD 95%, test conditions producing)
- Nominal voltage
- 51.2 V
- Operation voltage range
- 44.8 – 57.6 V
- Nominal capacity
- 200 Ah
- Nominal power charging / unloading
- 5.12 kW
- Maximum discharge power
- 10.24 kW
- C recommended loading / unloading rate
- 0.5 C
- C maximum discharge rate
- 1 C
- Recommended current loading / unloading
- 100 A
- Maximum discharge current
- 200 A (continuu)
- Tip current discharge
- 300 A (up to 2 minutes @ 25 ° C)
- Recommended download depth (DOD)
- 95%
- Net weight
- 96 kg
- Dimensions (W / D / H)
- 710 × 165 × 640 mm
- Temperatura functionare – incarcare
- 0... 55 ° C (- 20... 55 ° C with activated heating function)
- Temperatura functionare – descarcare
- -20…55°C
- Comunicatie
- CAN / RS485
- Life Cycle *
- Unlimited cycles / 10 years (0.2 C loading / unloading, 25 ° C, 95% DOD)
- Protection degree housing
- IP65
- System Extension
- Up to 50 units in parallel (10.24 - 512 kWh)
- Culoare carcasa
- White
- Modul WiFi
- Modul WiFi integrat; monitorizare prin APP, update OTA
- Self-heating function at low temperatures
- Optional (allows charging from -20 ° C)
- Active fire protection system
- Integrated aerosol fire extinguisher (rapid reaction < 5 s)
- Certificates and safety standards
- UN38.3 / CE- EMC / IEC62619 / IEC62040 / CE- RED / CEC / GOST-R
- Inverters compatible (exemple)
- SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, SAJ, DEYE etc.
