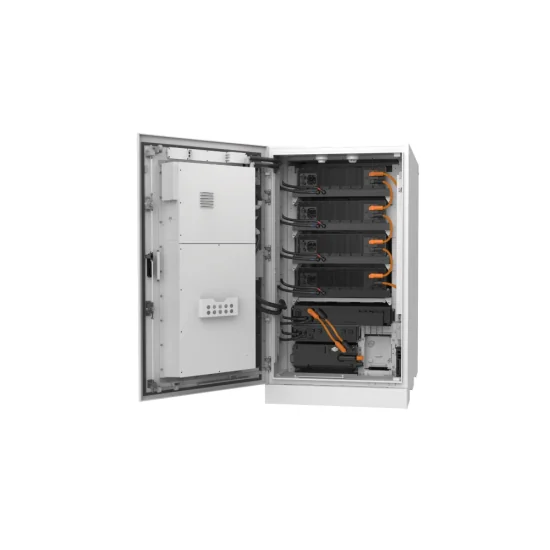

Storage system Huawei LUNA2000-241-2S1 · 241 kWh
2 photosListed capacity241 kWh
ManufacturerHuawei
CategoryEnergy storage system
Description
Storage system Huawei, reference LUNA2000-241KWH-S1. Capacity of the configuration listed: 241 kWh.
Protection: IP55. Dimensions: 1150 x 1800 x 2100 mm. Weight: < 2.8 t.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- LUNA2000-241KWH-S1
Product configuration
- Configuration capacity listed
- 241 kWh For the product or package listed; the expansion values are presented separately.
Energy storage system parameters · System
- Model
- LUNA2000-241-2S1
- Nominal capacity
- 241.0 kWh
- Maximum cycle efficiency
- 91.3%
- Adancime incarcare / descarcare
- 0-100%
- Dimensions (L x A x H)
- 1150 x 1800 x 2100 mm
- Weight
- < 2.8 t
- Control temperatura
- Hybrid cooling
- Balansare
- Balansare activa
- Calibrare SOC
- Automata
Energy storage system parameters · Environment
- Operating temperature
- -30 degrees C ~ 55 degrees C, with a drift above 50 degrees C
- Storage temperature
- -35 grade C ~ 60 grade C
- Operating humidity
- 0 -100% RH, without condensation
- Maximum operating altitude
- 4000 m
- Conformitate mediu
- RoHS6
Energy storage system parameters · Safety
- Extinguishing / protection system
- Oxygen barrier at pack level, directional exhaust gases, upper blast valve, aerosol
Energy storage system parameters · Auxiliary supply
- Voltage and consumption
- 176 -300 Vac, single-phase, maximum 5 kW; standby maximum 150 W
Energy storage system parameters · Communication
- Ports and Protocol
- Ethernet / fibra optica; Modbus TCP
Energy storage system parameters · Protection
- Protection degree
- IP55
Energy storage system parameters · EMC
- Clasa protectie EMC
- Class B
Energy storage system parameters · Acoustical
- Noise at nominal conditions
- maximum 65 dB (A)
Energy storage system parameters · Electrical protection
- Protection from lightning
- Tip II, port AC
- Protective functions
- Anti-islanding, residual current detection, insulation resistance detection, overflow AC, cable connection protection AC
Energy storage system parameters · Certifications
- Standards mentioned in the technical chart
- UL9540A, UN38.3, IEC 62477-1, IEC 62040-1, IEC 61000-6-1/2/3/4, IEC 62619, IEC 60529, VDE-AR-E 2510-2/50, IEC 62933-5-1/2, IEC 61727, EN 50549, GB/T 34120
Battery parameters DC · Battery
- Material celule
- LFP
- Nominal battery capacity
- 314 Ah
- System configuration
- 240S1P
- Number of battery packets
- 4
- Operation voltage range
- 648-852 V
- Current DC nominal
- 140 A
Parametri PCS AC · PCS
- Model PCS
- PCS2000-108K-MB1
- Nominal output power
- 108 kW
- Current AC nominal
- 155.9 A
- Voltage and frequency AC
- 380 / 400 / 415 V (3P4W), 50 / 60 Hz
- Adjustable power factor
- -1 ... +1
- Current harmonics AC THDi
- not more than 1.5% at rated power, on-grid
- Voltage harmonics AC THDU
- maximum 2.0% on linear load, off-grid
