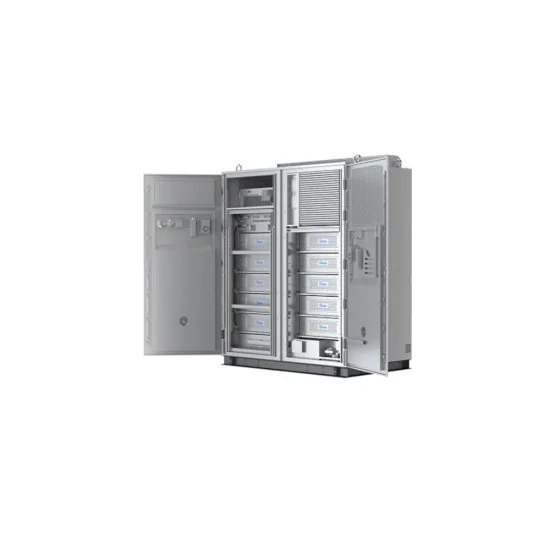

Energy storage system Deye MC-L430-2H3, 430 kWh, commercial & industrial BESS
2 photosListed capacity430.08 kWh
ManufacturerDeye
CategoryEnergy storage system
Description
Storage system Deye, reference MC-L430-2H3. Capacity of the configuration listed: 430.08 kWh.
Technology: LiFePO Protection: IP54. Dimensions: 2000 × 1300 × 2440 mm 2000 × 1300 × 2700 mm (with "air output cover"). Weight: ≤ 5000 kg.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- MC-L430-2H3
Product configuration
- Configuration capacity listed
- 430.08 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Model
- MC-L430-2H3
- Battery chemistry
- LiFePO₄
- Nominal energy
- 430.08 kWh
- Nominal capacity
- 280 Ah
- Voltage DC nominal
- 768 Vdc
- Voltage range DC
- 636 … 876 Vdc
- Loading / unloading rate
- 0.5P
- Voltage AC nominal
- 380 / 400 V, 3 L + N + PE
- Nominal frequency
- 50 / 60 Hz
- Rated power
- 200 kW
- Maximum power
- 220 kW (1.1 × nominal)
- Power factor
- -0.8 … +0.8
- Protection degree
- IP54
- Cooling
- Liquid cooling
- Communication
- RS485, Modbus TCP, DIDO
- Dimensions (L × A × Q)
- 2000 × 1300 × 2440 mm 2000 × 1300 × 2700 mm (with "air output cover")
- Weight
- ≤ 5000 kg
- Operating temperature
- -25°C … +55°C
- Umiditate
- 0... 95% (without condensation)
- Altitudine
- ≤ 2000 m
- Stingere incendiu
- Aerosol, water
