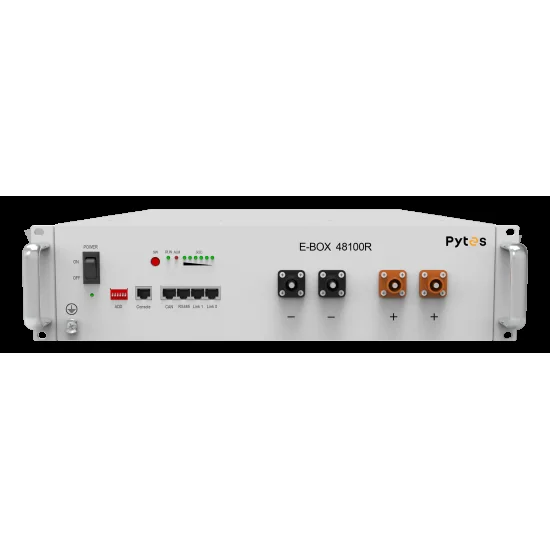

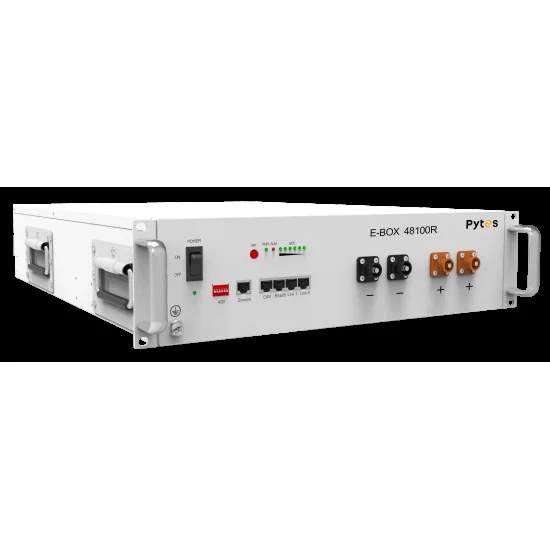

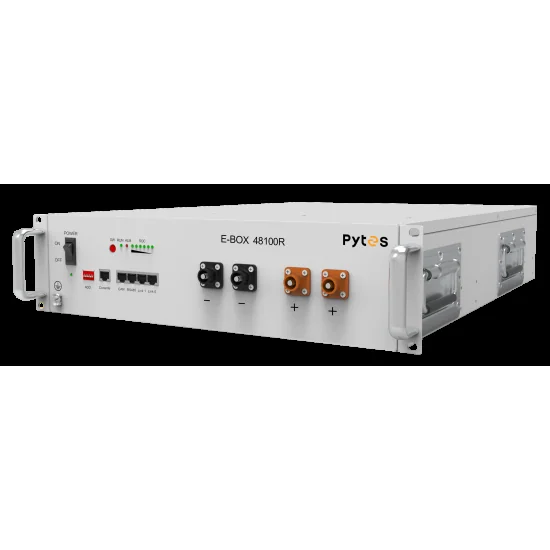

Battery Pytes Lithium LifePo4 E-BOX-48100R, 48 V 5.12 kWh
4 photosListed capacity5.12 kWh
ManufacturerPytes
CategoryBattery
Description
Battery Pytes, reference E-BOX-48100R. Capacity of the configuration listed: 5.12 kWh.
Rated voltage: 51.2 V. Dimensions: 439 x 620 x 117 mm. Weight: 51.02 kg.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Pytes
- Model / reference
- E-BOX-48100R
Product configuration
- Configuration capacity listed
- 5.12 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Rated voltage
- 51.2 V
- Voltage
- 47,5V-57,6V
- Nominal capacity
- 100 Ah
- Maximum output power
- 5.12 kWh
- Downloading current
- 50A (2.56 kW DC)
- Maximum load / discharge current
- 50A (2.56 kW DC)
- Maximum discharge current
- 102 A (5.22 kW to 15 s)
- Communication protocol
- CAN/RS485
- Dimensions (L x l x H)
- 439 x 620 x 117 mm
- Weight
- 51.02 kg
- Life Cycle
- ≥ 6000 cycles
- Guarantee
- 10 years
- Scalabilitate
- 16 piece (81.92 kWh) in a grup6 group (491.52 kWh) in a hub system
- Temperatura ambientala
- -10°C~50°C
