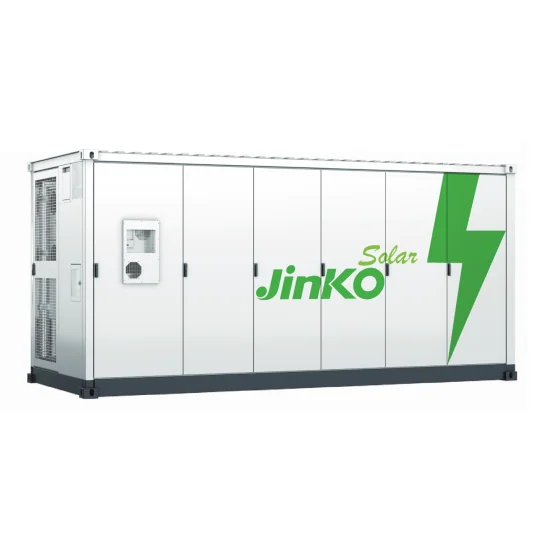

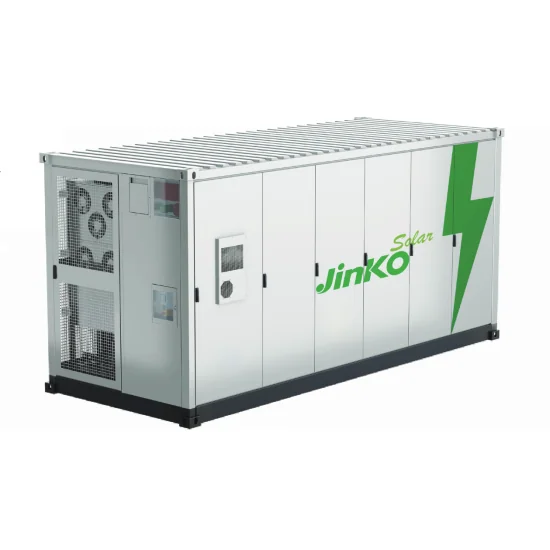

Storage solutions for photovoltaic parks, Suntera JKS-3440AL
3 photosListed capacity3440 kWh
ManufacturerJinko Solar
CategoryEnergy storage system
Description
Storage system Jinko Solar, reference JKS-3440AL. Capacity of the configuration listed: 3440 kWh.
Rated voltage: 1.228.8 V. Technology: Lithium-iron phosphate (LFP). Protection: IP54. Dimensions: 6.058 × 2.438 × 2.896 mm. Weight: Approximately 35.000 kg.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Jinko Solar
- Model / reference
- JKS-3440AL
Product configuration
- Configuration capacity listed
- 3440 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Model
- Jinko Solar Suntera JKS-3440AL
- Chimie celule
- Lithium-iron phosphate (LFP)
- Cell parameters
- 3.2 V / 280 Ah
- Maximum load / discharge power
- 0.5 P
- System configuration
- 1P384S × 10
- Nominal capacity
- 3.44 MWh
- Rated voltage
- 1.228.8 V
- Voltage range
- 1.075,2–1.382.4 V
- Cooling
- Liquid cooling
- Operating temperature
- −20°C … +50°C
- Umiditate
- ≤ 95% RH, without condensation
- Altitudine
- ≤ 2.000 m; < 4.000 m optional, with derating
- Noise level
- ≤ 80 dB (A) to 1 m
- Protection
- IP54
- Fire protection
- Gas sensors + ventilation deflagation + FM200/Novec 1230 / aerosol + dry water duct
- External communication
- Ethernet / Optical Fibre Optional
- Dimensions (L × l × Q)
- 6.058 × 2.438 × 2.896 mm
- Weight
- Aproximativ 35.000 kg
