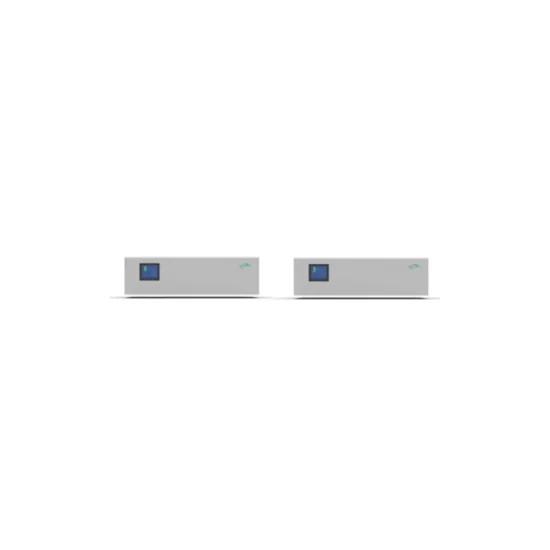

Battery Enershare WTS Energy with Smart BMS 9.9 KWH - optional up to 26.4 KWH
2 photosDescription
Storage system Enershare, reference Enershare -Energy. Capacity of the configuration listed: 9.9 kWh.
Rated voltage: 9.9 kWh: 192 V; 13.2 kWh: 256 V; 16.5 kWh: 320 V; 19.8 kWh: 384 V; 23.1 kWh: 448 V; 26.4 kWh: 512 V. Protection: IP65. Dimensions: 9.9 kWh: 800 × 650 × 260; 13.2 kWh: 975 × 650 × 260; 16.5 kWh: 1150 × 650 × 260; 19.8 kWh: 1325 × 650 × 260; 23.1 kWh: 1500 × 650 × 260; 26.4 kWh: 1675 × 650 × 260. Weight: 9.9 kWh: 129.5 kg; 13.2 kWh: 166 kg; 16.5 kWh: 202.5 kg; 19.8 kWh: 239 kg; 23.1 kWh: 275.5 kg; 26.4 kWh: 312 kg.
The basic configuration is 9.9 kWh. The table also shows variants of expansion; these are not automatically included in the base configuration.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Enershare
- Model / reference
- Enershare-Energy
Product configuration
- Configuration capacity listed
- 9.9 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Energia sistemului
- 9.9 kWh: 9.9; 13.2 kWh: 13.2; 16.5 kWh: 16.5; 19.8 kWh: 19.8; 23.1 kWh: 23.1; 26.4 kWh: 26.4
- Useful energy
- 9.9 kWh: 9.6; 13.2 kWh: 12.8; 16.5 kWh: 16.0; 19.8 kWh: 19.2; 23.1 kWh: 22.4; 26.4 kWh: 25.6
- Maximum output current
- 30 A
- Peak current (5 s)
- 50 A
- Rated voltage
- 9.9 kWh: 192 V; 13.2 kWh: 256 V; 16.5 kWh: 320 V; 19.8 kWh: 384 V; 23.1 kWh: 448 V; 26.4 kWh: 512 V
- Voltage range
- 9.9 kWh: 162~219 V; 13.2 kWh: 216~292 V; 16.5 kWh: 270~365 V; 19.8 kWh: 324~438 V; 23.1 kWh: 378~511 V; 26.4 kWh: 432~584 V
- Scalabilitate
- Up to 6 parallel stacks, from 9.6 kWh to 153.6 kWh
- Dimensions (Q x L x A) mm
- 9.9 kWh: 800×650×260; 13.2 kWh: 975×650×260; 16.5 kWh: 1150×650×260; 19.8 kWh: 1325×650×260; 23.1 kWh: 1500×650×260; 26.4 kWh: 1675×650×260
- Weight
- 9.9 kWh: 129.5 kg; 13.2 kWh: 166 kg; 16.5 kWh: 202.5 kg; 19.8 kWh: 239 kg; 23.1 kWh: 275.5 kg; 26.4 kWh: 312 kg
- Operating temperature
- -10 ~ 55°C
- Protection
- IP65
- Loading-download efficiency
- ≥ 96%
- Certification
- VDE2510-50 / IEC62619 / CEC / EC / UN38.3
- Applications
- ON Grid / Backup ON Grid / OFF Grid
- Guarantee
- 10 years
