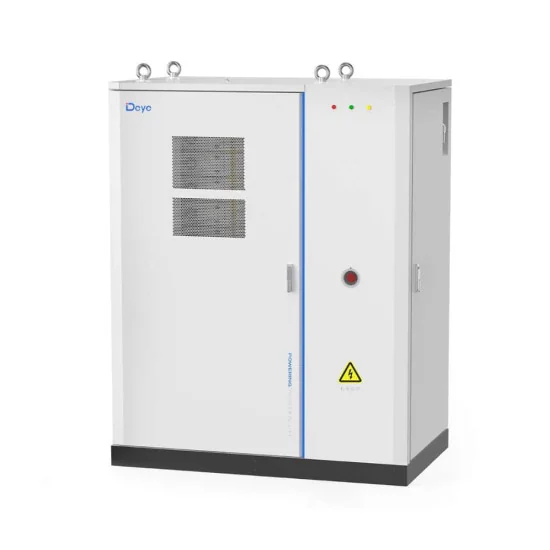

Storage system 120 kWh Deye GE-F120-2H2
2 photosListed capacity122.8 kWh
ManufacturerDeye
CategoryEnergy storage system
Description
Storage system Deye, reference GE-F120-2H2. Capacity of the configuration listed: 122.8 kWh.
Rated voltage: 51.2. Technology: LiFePO Dimensions: 1780 × 1056 × 2235 Weight: 2090.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- GE-F120-2H2
Product configuration
- Configuration capacity listed
- 122.8 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Model
- GE-F120-2H2
- Rated power (W)
- 50000
- Voltage and frequency AC
- 50/60Hz; 220/380, 230/400Vac
- Network type
- 3 L / N / PE
- Number of parallel units (off-grid)
- 10
- Energy Configuration (kWh)
- 122.8
- Dimensions (mm)
- 1780 × 1056 × 2235
- Weight (kg)
- 2090
- Current AC nominal (A)
- 75.8
- Battery voltage (V)
- 500 ~ 700
- Maximum efficiency RTE
- 89%
- Battery chemistry
- LiFePO₄
- IP protection
- IP55
- Installation method
- Floor mounting
- Temp. storage (° C)
- 0 ~ 35
- Temp. operare (°C)
- -20 ~ 55 (>43 derating)
- Guarantee
- 10 years
Battery specifications
- Battery mode rated voltage (V)
- 51.2
- Battery mode capacity (kWh)
- 5.12
- Comunicare BMS
- CAN
- Module dimensions (mm)
- 440 × 570 × 133
- Module weight (kg)
- 44
- Lifetime (cycles)
- ≥6000 (@25°C, 0.5C/0.5C, EOL 70%)
- Battery certifications
- UN38.3, IEC 62619, IEC 61000
