Battery Deye GB-LM4.0, 4 kWh high-voltage
3 photosListed capacity4.09 kWh
ManufacturerDeye
CategoryBattery
Description
Battery Deye, reference GB-LM4.0. Capacity of the configuration listed: 4.09 kWh.
Rated voltage: 102.4 Vdc. Technology: LiFePO4 (LFP). Protection: IP65. Dimensions: 540 × 385 × 220 mm. Weight:
GB-LM4.0 is a single module of 4.09 kWh. System values with 2 - 6 modules in the table describe extended configurations.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- GB-LM4.0
Product configuration
- Configuration capacity listed
- 4.09 kWh For the product or package listed; the expansion values are presented separately.
Caracteristici modul GB-LM
- Chimie celule
- LiFePO₄ (LFP)
- Nominal mode energy
- 4.09 kWh
- Plugin rated voltage
- 102.4 Vdc
- Nominal capacity
- 40 Ah
- Nominal current system
- 20 A
- Current peak download
- 50 A (2 min, 25°C)
- Charging temperature
- 0°C … +55°C
- Discharge temperature
- -20°C … +60°C
- Storage temperature
- 0°C … +35°C
- Protection
- IP65
- Module dimensions
- 540 × 385 × 220 mm
- Weight Module
- ≈ 39 kg
GBL System Features
- Nr. module compatible
- 2 - 6 serial modules
- System Operating Voltage
- 166.4 … 700 V
- DOD recomandat
- 90%
- Lifetime
- ≥ 6000 cicluri (25°C)
- Umiditate operare
- 5% … 90%
- Maximum altitude
- ≤ 2000 m
- Communication
- CAN 2.0, RS485
- Display
- LCD frontal
- Installation
- On the floor (floor-mount)
- Guarantee
- Up to 10 years

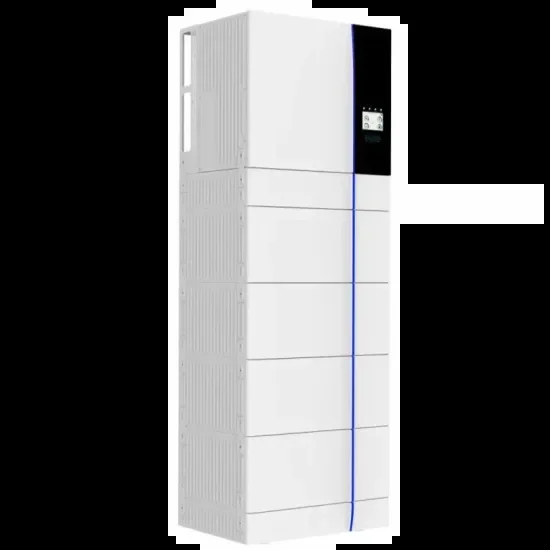

System Settings
- Rated voltage system
- 2 module: 204.8 V 3 module: 307.2 V 4 module: 409.6 V 5 module: 512 V 6 module: 614.4 V
- Total energy
- 2 mod: 8.18 kWh 3 mod: 12.27 kWh 4 mod: 16.36 kWh 5 mod: 20.45 kWh 6 mod: 24.56 kWh
- Useful energy (DC)
- 2 mod: 7.36 kWh 3 mod: 11.04 kWh 4 mod: 14.72 kWh 5 mod: 18.40 kWh 6 mod: 22.10 kWh
- System dimensions
- 2 mod: 540×385×650 mm 3 mod: 540×385×870 mm 4 mod: 540×385×1090 mm 5 mod: 540×385×1310 mm 6 mod: 540×385×1530 mm
- System weight
- 2 mod: 97 kg 3 mod: 136 kg 4 mod: 175 kg 5 mod: 214 kg 6 mod: 253 kg
