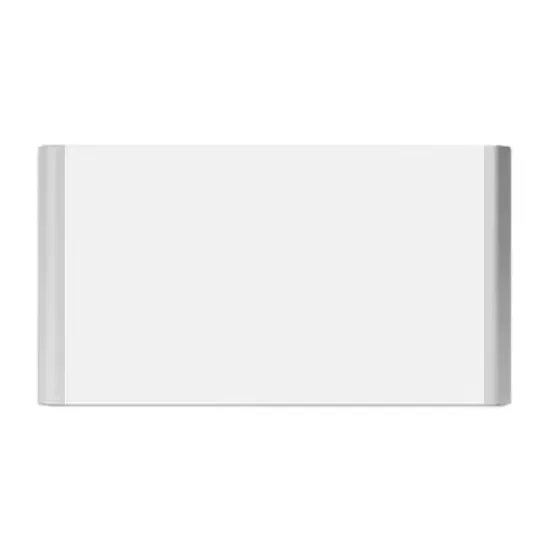

Battery module Huawei LUNA2000-5-E0 · 5 kWh
2 photosListed capacity5 kWh
ManufacturerHuawei
CategoryBattery
Description
Battery module Huawei LUNA2000-5-E0 of 5 kWh, with cells LiFePO4. For operation it shall be used together with the power module LUNA2000-5KW-C0, sold separately.
The battery module shall have dimensions 670 × 150 × 360 mm and mass 50 kg according to sheet Huawei attached, edition v20201006. The capacity is expressed in kWh; the output power refers to the complete system with the power module mounted.
The data below are those on the attached manufacturer's sheet. The source table mixed the power module dimensions with those of the battery; the values were separated. The conditions for the delivery of the revision and the commercial guarantee shall be confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Manufacturer model
- LUNA2000-5-E0
- Source Catalogue Reference
- LUNA2000-5KW-E0
Battery module LUNA2000-5-E0
- Module Capacity
- 5 kWh
- Number of modules included
- 1
- Cell technology
- LiFePO4
- Dimensions L × A × Q
- 670 × 150 × 360 mm
- Weight Module
- 50 kg
- Power module required
- Huawei LUNA2000-5KW-C0; separat
System with a module + power unit
- Maximum output power
- 2.5 kW
- Peak power
- 3.5 kW for 10 s
- Single-phase rated voltage
- 360 V
- Single-phase operating voltage
- 350–560 V
- Rated three-phase voltage
- 600 V
- Three-phase operating voltage
- 600–980 V
Conditions in the manufacturer's fiche
- Operating temperature
- - 10... +55 ° C; reduction of power between − 10 and +5 ° C
- Umiditate
- 5–95%
- Cooling
- Natural convection
- Protection
- IP65
- Zgomot
- < 29 dB
- Installation
- On the floor, standard support; on the wall, optional
- Usable energy conditions
- 100% DoD, 0.2 C loading / unloading, 25 ° C
- Extindere
- 5, 10 or 15 kWh per system; maximum 2 systems in parallel
- Inverters in the attached sheet
- SUN2000-2/3/3.68/4/4.6/5/6KTL-L1; SUN2000-3/4/5/6/8/10KTL-M0 and M1; for SUN2000L and M0 the PDF version note applies
- Security indicated by the manufacturer
- 10 years; the terms of the guarantee letter shall apply
- Indicated standards
- EC, CMR, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3
