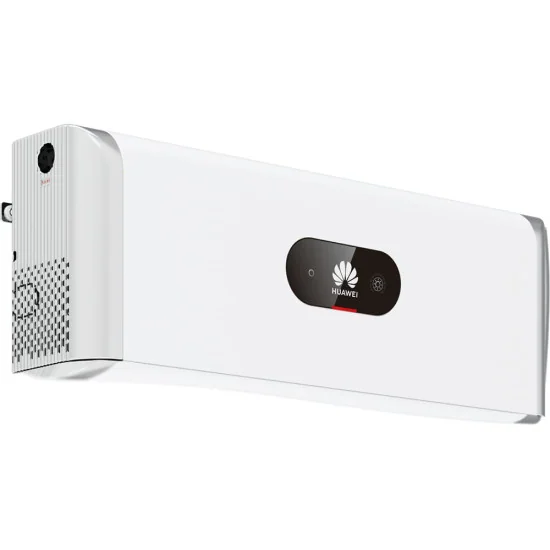

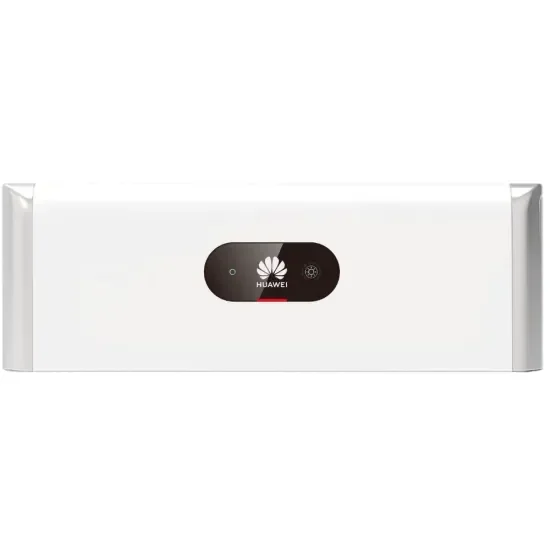

Battery management module Huawei LUNA2000-5KW-C0
3 photosProduct typeControl and backup
ManufacturerHuawei
CategoryControl and backup
Description
Control and backup Huawei, reference LUNA2000-5KW-C0.
Rated voltage: 360 V. Technology: Lithium-iron phosphate (LiFePO4). Protection: IP65. Dimensions: 670 × 150 × 600 mm. Weight: 63.8 kg / 113.8 kg / 163.8 kg.
This product does not include its own storage capacity.
Power / control module without battery modules. The values of 5, 10 and 15 kWh in the documentation refer to systems equipped separately with batteries.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- LUNA2000-5KW-C0
System performance and configurations
- Type
- Power module for storage system LUNA2000-5/10/15-S0
- Power mode model
- LUNA2000-5KW-C0
- Accessible Battery Module
- LUNA2000-5-E0 (battery module 5 kWh with energy optimiser included)
- Battery mode energy
- 5 kWh per battery module
- Number of battery modules per system
- 1 (LUNA2000-5-S0) / 2 (LUNA2000-10-S0) / 3 (LUNA2000-15-S0)
- Energy usable by system ¹
- 5 kWh / 10 kWh / 15 kWh
- Maximum output power (system)
- 2.5 kW (5 kWh) / 5 kW (10 kWh) / 5 kW (15 kWh)
- Peak output power (10 s)
- 3.5 kW (5 kWh) / 7 kW (10 kWh) / 7 kW (15 kWh)
Voltage and operating intervals
- Nominal voltage single-phase system
- 360 V
- Operating Voltage Beach (single-phase)
- 350 V – 560 V
- Rated three-phase system voltage
- 600 V
- Operating Voltage Beach (three-phase)
- 600 V – 980 V
Power mode communication and display
- Local Display
- SOC status indicator + LED system status indicator
- Communication
- Parallel operation communication (max. 2 systems LUNA2000 in parallel)
General data, dimensions and weight
- System size 5 kWh (L × A × Q)
- 670 × 150 × 600 mm
- System size 10 kWh (L × A × Q)
- 670 × 150 × 960 mm
- System size 15 kWh (L × A × Q)
- 670 × 150 × 1320 mm
- System weight 5 / 10 / 15 kWh (with floor set)
- 63.8 kg / 113.8 kg / 163.8 kg
- Power module size (L × A × Q)
- 670 × 150 × 240 mm
- Power mode weight LUNA2000-5KW-C0
- 12 kg
- Battery module size (L × A × Q)
- 670 × 150 × 360 mm
- Battery mode weight LUNA2000-5-E0
- 50 kg
Installation and environmental conditions
- Installation mode
- Floor support (standard), wall mounting (optional)
- Operating temperature ²
- -10 ° C to +55 ° C (downhill at load / discharge below 5 ° C)
- Relative humidity
- 5% - 95% (without condensation)
- Cooling
- Natural convection
- Protection
- IP65
- Noise emission
- < 29 dB
Technology, guarantee, compatibility and certification
- Cell technology
- Lithium-iron phosphate (LiFePO4)
- Downloading depth (DoD) ¹
- up to 100% (standard test conditions)
- Guarantee ³
- 10 years (according to guarantee letter Huawei for conditional applications)
- System scalability
- Max. 2 systems LUNA2000 in parallel (up to 30 kWh per system)
- Inverters compatible
- SUN2000L-2/3/3.68/4/4.6/5KTL SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 SUN2000-3/4/5/6/8/10KTL-M0 SUN2000-3/4/5/6/8/10KTL-M1
- Main certifications and standards
- EC, CMR, CEC, VDE2510-50, IEC 62619, IEC 60730, UN38.3
- Product control model
- LUNA2000-5KW-C0 (power mode) LUNA2000-5-E0 (battery mode) LUNA2000 Wall Mounting Bracket (wall support, optional)
