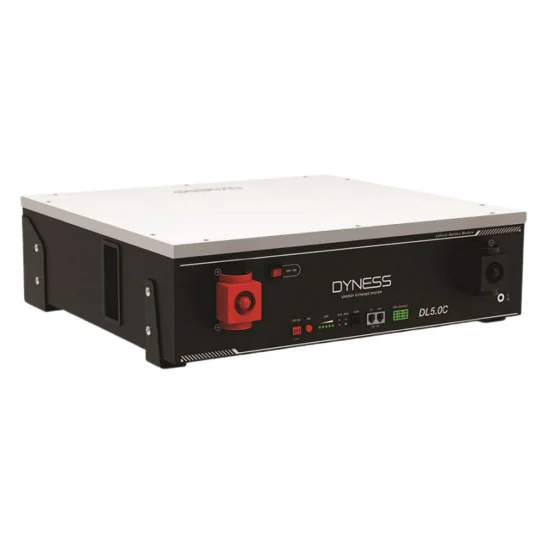

Battery Dyness DL5.0C, 5.12 kWh low-voltage
2 photosListed capacity5.12 kWh
ManufacturerDyness
CategoryBattery
Description
Battery Dyness, reference DL5.0C. Capacity of the configuration listed: 5.12 kWh.
Rated voltage: 51.2 V. Technology: LiFePO4. Protection: IP20. Dimensions: 558 × 545 × 150 mm. Weight: 54 kg.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Dyness
- Model / reference
- DL5.0C
Product configuration
- Configuration capacity listed
- 5.12 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Model
- DL5.0C
- Battery type
- LiFePO4
- Nominal battery energy
- 5.12 kWh
- Nominal capacity
- 100 Ah
- Nominal voltage
- 51.2 V
- Operating voltage
- 44.8 – 57.6 V
- Recommended loading / unloading rate (C)
- 0.5 C
- Maximum download rate (C)
- 1 C
- Recommended current loading / unloading
- 50 A
- Maximum continuous current charging
- 75 A
- Maximum continuous discharge current
- 100 A
- Upload / download peak current
- 110 A (15 s)
- Adancime descarcare (DOD)
- 90%
- Net weight
- 54 kg
- Dimensions (W × D × H)
- 558 × 545 × 150 mm
- Temperatura functionare – incarcare
- 0 – 55°C
- Operation temperature - download
- -20 – 55°C
- Comunicatie
- CAN / RS485 / RS232
- Life Cycle 1]
- ≥ 6000 cycles (0.2 C loading / unloading, 25 ° C, 80% DOD)
- Protection degree
- IP20
- System Extension
- Up to 50 units in parallel (up to 256 kWh)
- Avantaje (Pros)
- Can be used in off-grid and hybrid systems; compact design
- Certification & Safety Standards
- UN38.3 / EC- EMC / IEC62619 / CEI-021
- Inverters compatible
- SMA, Victron, Ingeteam, Delios, Goodwe, Solis, Deye, SAJ, Voltronic etc.
