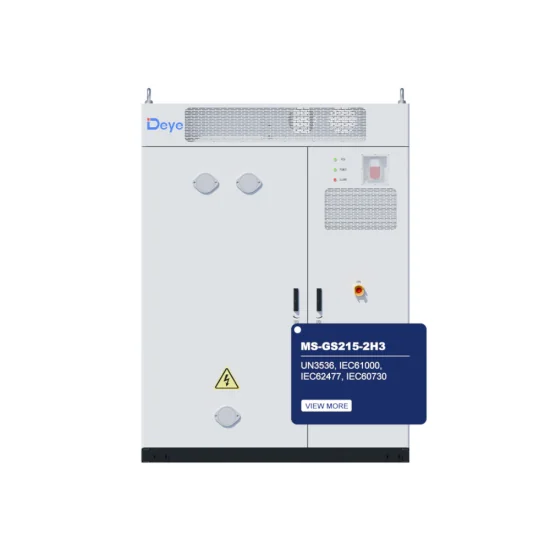

Storage system 215 kWh Deye MS-GS215-2H3 (air cooling), on- grid & off-grid
2 photosListed capacity215 kWh
ManufacturerDeye
CategoryEnergy storage system
Description
Storage system Deye, reference MS-GS215-2H3. Capacity of the configuration listed: 215 kWh.
Protection: IP54. Dimensions: 1865 × 1000 × 2500 mm. Weight: 3030 kg.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- MS-GS215-2H3
Product configuration
- Configuration capacity listed
- 215 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Model
- MS-GS215-2H3
- Power AC output
- 100 kW
- Frequency and voltage AC output
- 50 / 60 Hz; 380 / 400 Vac
- Maximum accessible power PV
- 200 kWp
- Network type
- 3 L / N / PE
- Battery operation voltage
- 660 – 864 Vdc
- Energy Capacity
- 215 kWh
- System dimensions (W × D × H)
- 1865 × 1000 × 2500 mm
- approximate weight
- 3030 kg
- Voltage range DC
- DC: 600 – 935 V (grid on) / DC: 700 – 935 V (grid off)
- Total system efficiency (TEN)
- 88%
- System communication
- ETH / 4G
- Temperature System Operating
- -20°C … +50°C (>45°C derating)
- Maximum operating altitude
- ≤ 3000 m
- Carcase protection grade
- IP54
- Grad anticoroziune
- ≤ C5
- System certifications
- UN3536, IEC61000, IEC62477, IEC60730
- Current AC nominal converter
- 152 A
- Current AC maximum converter
- 167 A
- Parallel off-grid operation
- Up to 10 units
- Peak power
- 1.1 × rated power
- Power factor
- -1 … +1
- Total harmonic distortion (THD)
- < 3%
- Injection DC
- < 0.5 In
- Display
- LCD
- Relative humidity
- 15% - 85% (without condensation)
- Convert dimensions (W × D × H)
- 506 × 772 × 310 mm
- Comunicare convertor
- CAN, RS485, ETH
- Overvoltage protection
- DC Type II / AC Type II
- Protection level
- Class 1
- Network regulations
- EN50549, AS4777.2, CEI 0-21, CEI-016, NRS097
- Maximum converter efficiency
- 97.6%
- Maximum input power PV
- 160 kW
- Maximum input voltage PV
- 800 V
- Starting voltage PV
- 200 V
- Voltage range MPPT
- 180 – 750 V
- Full-load voltage range
- 450 – 750 V
- Number MPPT
- 8
- Maximum current MPPT / short circuit
- 40 / 60 A
