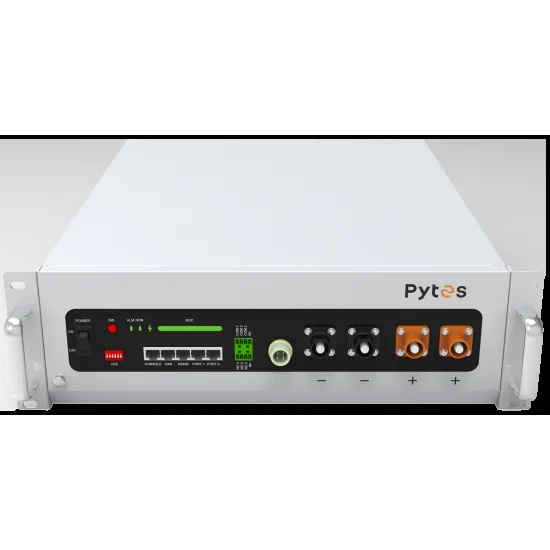

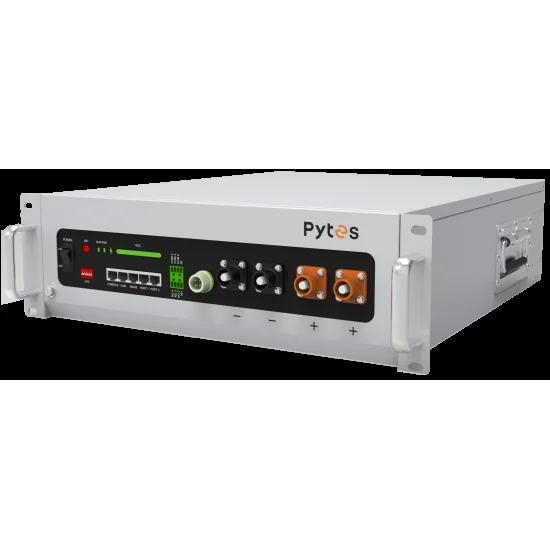

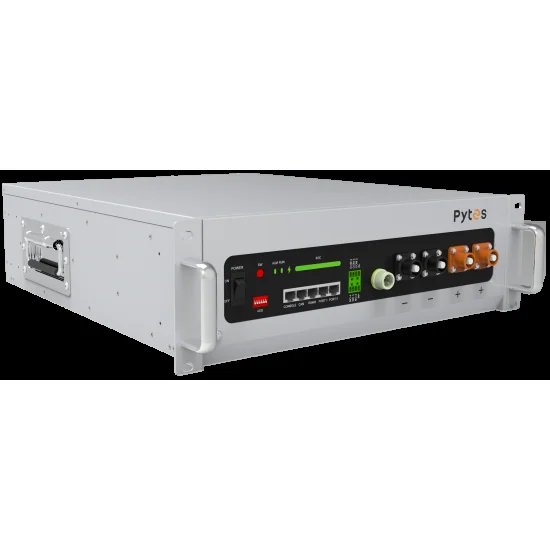

Battery Pytes Lithium LifePo4 V5a, 48 V 5.12 kWh with heating
4 photosListed capacity5.12 kWh
ManufacturerPytes
CategoryBattery
Description
Battery Pytes, reference V5a. Capacity of the configuration listed: 5.12 kWh.
Rated voltage: 51.2 V. Dimensions: 440 x 530 x 140 mm. Weight: 44 kg.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Pytes
- Model / reference
- V5a
Product configuration
- Configuration capacity listed
- 5.12 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Rated voltage
- 51.2 V
- Voltage
- 47,5V-57,6V
- Nominal capacity
- 100 Ah
- Maximum output power
- 5.12 kWh
- Downloading current
- 75A
- Maximum load / discharge current
- 75A
- Maximum discharge current
- 100A
- Communication protocol
- CAN/RS485
- Dimensions (L x l x H)
- 440 x 530 x 140 mm
- Weight
- 44 kg
- Life Cycle
- ≥ 6000 cycles
- Guarantee
- ≥ 10 years
- Scalabilitate
- 14 piece (71.68 kWh) in a grup6 group (430.08 kWh) in a hub system
- Temperatura ambientala
- -10°C~50°C
PDF documents
Fisa Tehnica Pytes V5aDatasheetOpen ↗Manual of use Pytes V5aUsage ManualOpen ↗Declaration of Conformity Pytes V5aCertificate / declarationOpen ↗TAV Compliance Certificate Pytes V5aCertificate / declarationOpen ↗Installation guide with inverter Deye Pytes V5aInstallation guideOpen ↗Installation guide with Victron inverter Pytes V5aInstallation guideOpen ↗Setare pini comunicatie inverters Pytes V5aDocument tehnicOpen ↗
