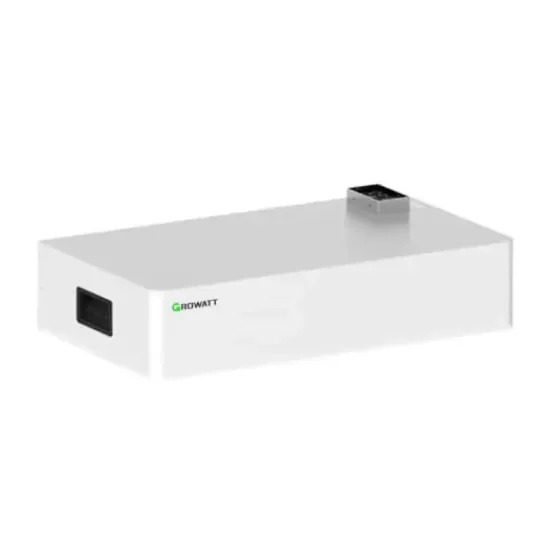

Battery Growatt AXE 5.0 L C1 LiFePo4, 5 kWh
2 photosListed capacity5 kWh
ManufacturerGrowatt
CategoryBattery
Description
Battery Growatt, reference AXE 5.0 L C1. Capacity of the configuration listed: 5 kWh.
Rated voltage: 51.2 V. Technology: LiFePO4 - LFP (no cobalt). Protection: IP20. Dimensions: 650 × 350 × 165 mm. Weight: 42 kg.
The specifications below shall keep the operating conditions and configurations declared in the documentation. Those technical guarantees are those from the source; commercial conditions NORDLINE are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Growatt
- Model / reference
- AXE 5.0L-C1
Product configuration
- Configuration capacity listed
- 5 kWh For the product or package listed; the expansion values are presented separately.
Technical specifications
- Model
- AXE 5.0L
- Battery chemistry
- LiFePO4 / LFP (no cobalt)
- Nominal energy
- 5.0 kWh
- Rated voltage
- 51.2 V
- Operating voltage range
- 48 – 57.6 V
- Nominal capacity
- 100 Ah
- Rated power
- 3 kW
- Nominal current loading / unloading
- 60 A
- Peak power
- 4.6 kW @ 3 s
- Dimensions (L × A × Q)
- 650 × 350 × 165 mm
- Weight
- 42 kg
- Installation
- Floor installation
- Carcase protection (IP)
- IP20
- Temperature range operation
- 0 – 50 °C
- Downloading depth (DoD)
- 92%
- System Configuration / Scale
- 1 - 10 modules (5 - 50 kWh) per system; max. 8 parallel clusters (max. 400 kWh)
- Communication / interface
- CAN / RS485
- Guarantee
- 10 years
