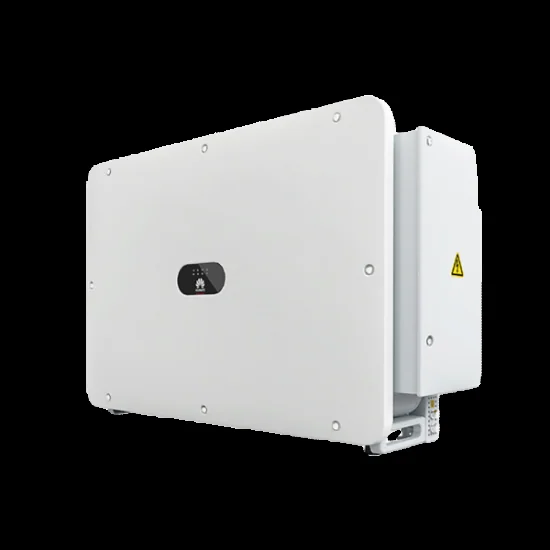

Three-phase on- grid inverter Huawei SUN2000-115KTL-M2 · 115 kW
4 photosRated power115 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Huawei, model SUN2000-115KTL-M2. Nominal power 115 kW. On- grid, three-phase.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-115KTL-M2
- Nominal filtering power
- 115 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Technical Specifications
- SUN2000-115KTL-M2
- Max. Efficiency
- ≥ 98.6% (400 v) and ≥ 98.8% (480 v)
- European Efficiency
- ≥ 98.4% (400 V) and ≥ 98.6% (480 V)
- Max. Input Voltage
- 1,100 V
- Max. input current per MPPT
- 30 A
- Max. short-circuit current
- 40 A
- Full-load MPPT voltage range
- 540–800 V (400 V) and 625–850 V (480 V)
- Rated input voltage
- 600 V (400 V) and 720 V (480 V)
- Max. number of inputs
- 20
- Number of MPP trackers
- 10
- Rated active power
- 115 kW
- Max. apparent power
- 125 kVA
- Rated output voltage
- 230 V/400 V and 277 V/480 V, 3 W + (N) b + PE
- Rated AC Grid Frequency
- 50 Hz / 60 Hz
- Rated Output Current
- 166.0 A (400 V) and 138.4 A (480 V)
- Max. Output Current
- 182.3 A (400 V) and 151.9 A (480 V)
- Adjustable Power Factor
- 0.8 leading ... 0.8 lagging
- Max. Total Harmonic Distortion
- < 3 %
- Input DC switch
- Yes
- Anti-Islanding Protection
- Yes
- Output overcurrent protection
- Yes
- Input Reverse Connection Protection
- Yes
- String Failure Detection
- Yes
- DC Surge Protection
- Type II
- AC Surge Protection
- Type II
- Insulation Resistance Detection
- Yes
- Residual Current Monitoring
- Yes
- Display
- LED indicator, Bluetooth + APP
- RS485
- Yes
- USB
- Yes
- MBUS
- Yes
- Dimensions (W x H x D)(incl. mounting plate)
- 1035 * 700 * 365 mm
- Weight (with installation plate)
- ≤93 kg
- Operation Temperature Range
- -25 ~ + 60 °C (-13 °F ~ 140 °F)
- Cooling
- Smart Air Cooling
- Relative Humidity
- 0 % RH ~ 100% RH
- Operating altitude
- 4,000 m

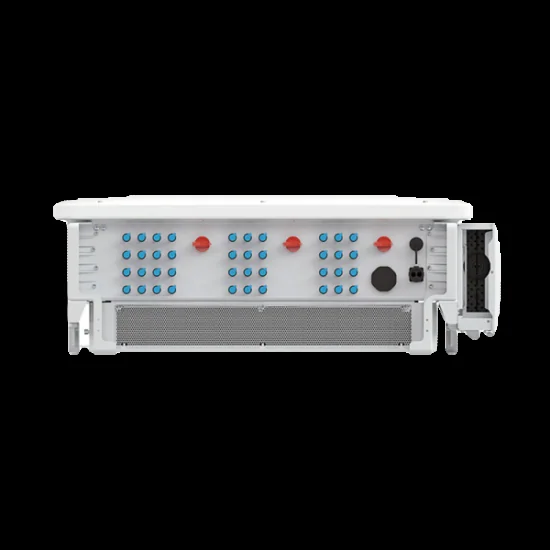

- Input Terminal
- Amphenol Helios H4
- Output Terminal
- Crimping module + OT/DT terminal
- Degree of protection
- IP66
