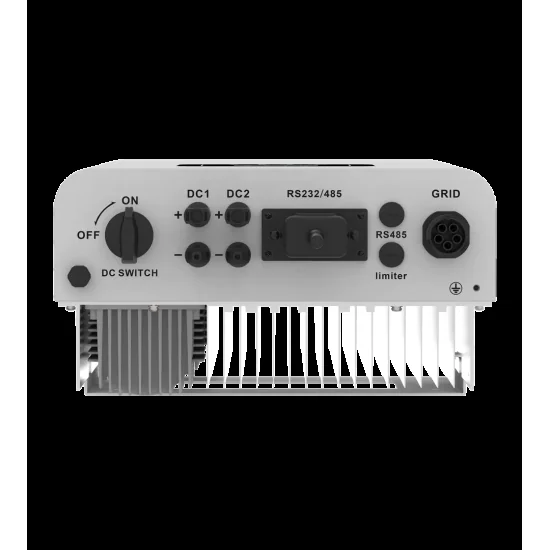

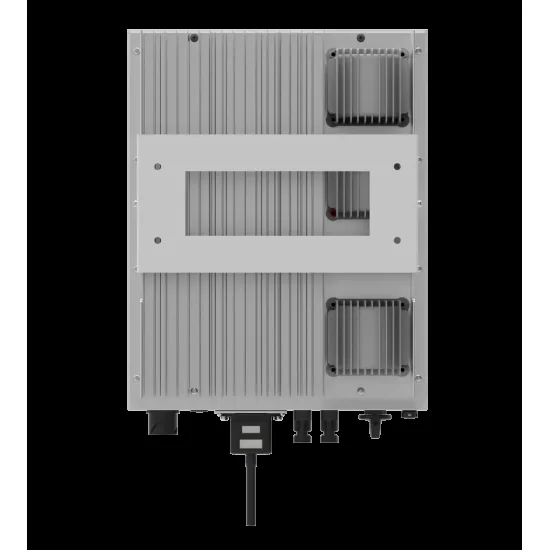

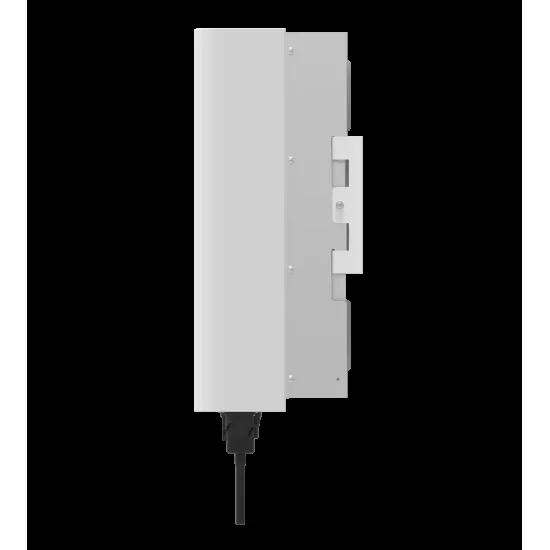

Three-phase on- grid inverter Deye SUN-15K-G05 · 15 kW
4 photosRated power15 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Deye, model SUN-15K-G05. Nominal power 15 kW. On- grid, three-phase.
Maximum efficiency: 98.5% / 98.0%. Protection: IP65. Dimensions: 332 × 472 × 203 mm. Weight: 15 kg.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-15K-G05
- Nominal filtering power
- 15 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Deye SUN-15K-G05
- Type
- Triphase on- grid inverter
- Maximum power PV
- 19.5 kW
- Maximum rated / apparent power AC
- 15 kW / 16.5 kVA
- Maximum voltage PV
- 1.000 V
- Starting / nominal voltage
- 250 V / 600 V
- Scope MPPT
- 200–850 V
- Maximum current PV
- 13 + 26 A
- Short circuit current
- 19.5 + 39 A
- Network voltage
- 3 L / N / PE, 220 / 380 V or 230 / 400 V
- Current AC nominal / maximum
- 22,7/21.7 A / 25/23.9 A
- Maximum / European efficiency
- 98.5% / 98.0%
- Randament MPPT
- >99%
- Size
- 332 × 472 × 203 mm
- Weight
- 15 kg
- Operating temperature
- −25°C … +60°C; derating peste +45°C
- Protection
- IP65
- Security declared
- 5 years
