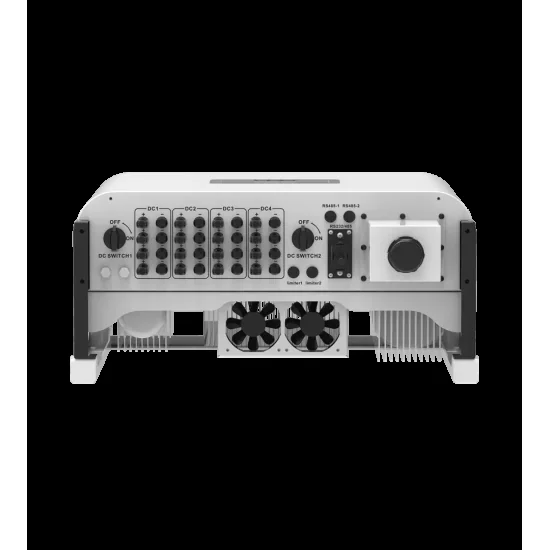

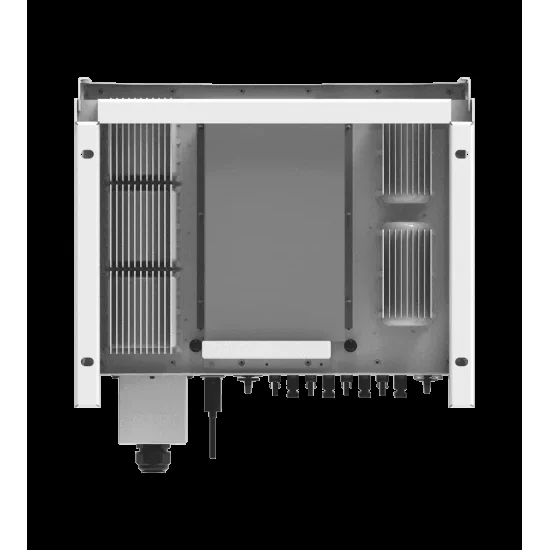

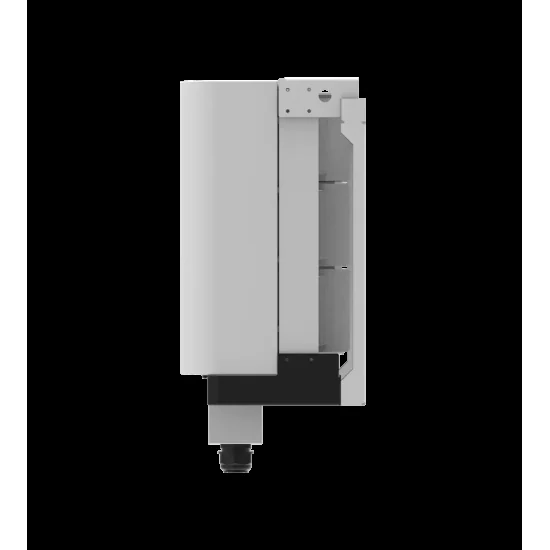

Three-phase on- grid inverter Deye SUN-50K-G03 · 50 kW
4 photosRated power50 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Deye, model SUN-50K-G03. Nominal power 50 kW. On- grid, three-phase.
Trackers MPPT: 4. Maximum efficiency: 98.7% / 98%. Protection: IP65. Dimensions: 647.5 × 537 × 303.5 mm. Weight: 44.5 kg.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-50K-G03
- Nominal filtering power
- 50 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Deye SUN-50K-G03
- Type
- Triphase on- grid inverter
- Maximum power PV
- 65 kW
- Power AC nominal / maximum
- 50 kW / 55 kW
- Maximum voltage DC
- 1.000 V
- Starting voltage
- 250 V
- Scope MPPT
- 200–850 V
- Trackers MPPT
- 4
- Current PV maximum / short circuit
- 40 + 40 + 40 + 40 A / 60 + 60 + 60 + 60 A
- Network voltage
- 3 L / N / PE, 220 / 380 V or 230 / 400 V
- Current AC nominal
- 75.8 A to 380 V / 72.5 A to 400 V
- Maximum current AC
- 83.3 A to 380 V / 79.7 A to 400 V
- Maximum / European efficiency
- 98.7% / 98%
- Size
- 647.5 × 537 × 303.5 mm
- Weight
- 44.5 kg
- Cooling / Noise
- Smart cooling / < 50 dB
- Protection
- IP65
- Security declared
- 5 years
