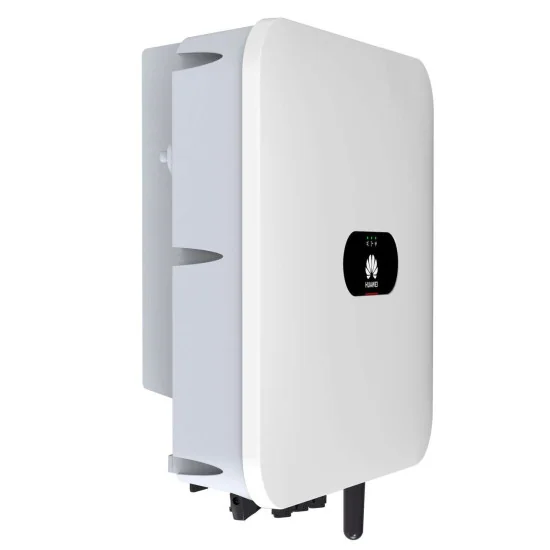

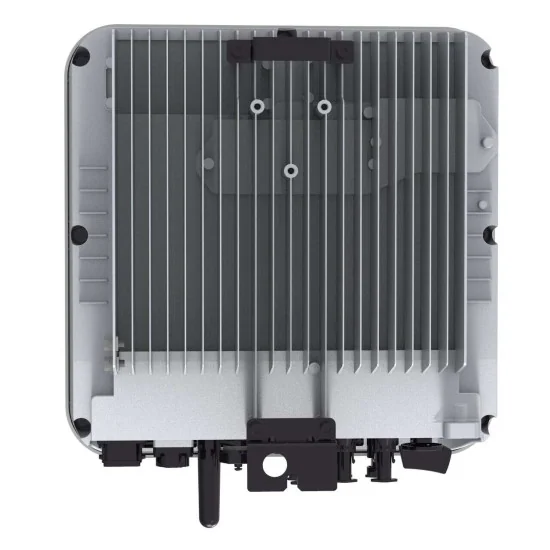

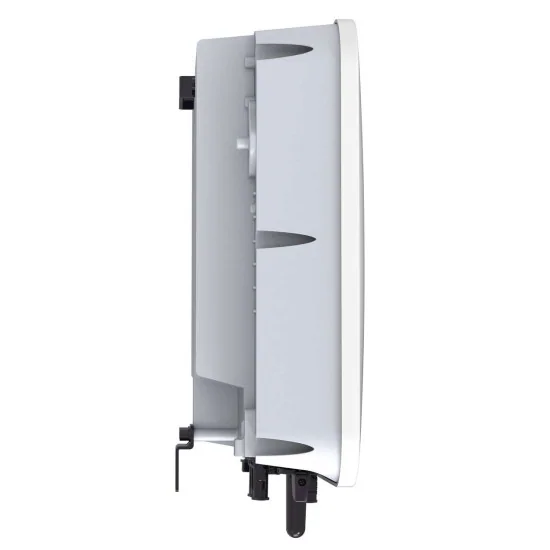

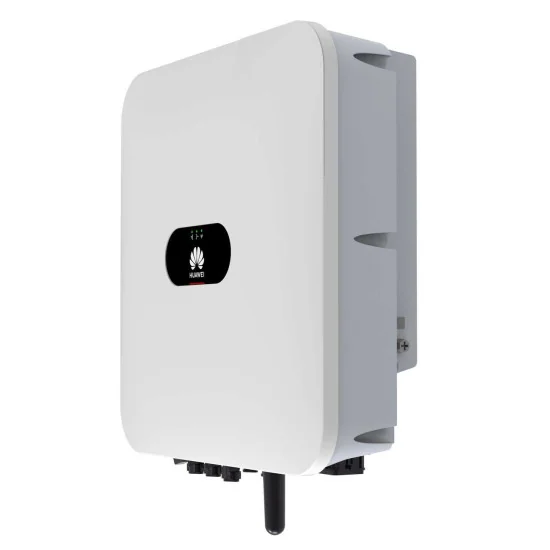

Three-phase hybrid inverter Huawei SUN2000-6KTL-M1 · 6 kW
5 photosRated power6 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Huawei, model SUN2000-6KTL-M1. Nominal power 6 kW. Hybrid, three-phase.
Trackers MPPT: 2. Battery voltage: 600 - 980 V DC. Maximum efficiency: 98.6%. Protection: IP65. Dimensions: 525 × 470 × 146.5 mm. Weight: 17 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-6KTL-M1
- Nominal filtering power
- 6 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Huawei SUN2000-6KTL-M1
- Inverter type
- Three-phase inverter, On- Grid / Hybrid, Battery-Ready
- Maximum efficiency
- 98.6 %
- European efficiency
- 97.7 %
- Power PV recommended
- 9 000 Wp
- Maximum voltage DC
- 1 100 V DC
- Operating voltage range
- 140 – 980 V DC
- Starting voltage
- 200 V DC
- Voltage DC nominal
- 600 V DC
- Maximum current on MPPT
- 11 A
- Maximum short circuit current
- 15 A
- Trackers number MPPT
- 2
- Stringuri PV per MPPT
- 1 string / MPPT
- Compatible batteries
- Huawei Smart String ESS 5 – 30 kWh
- Battery voltage range
- 600 – 980 V DC
- Maximum battery current
- 16 A
- Maximum charging power
- 10 000 W
- Maximum discharge power
- 6 600 W
- Network connection
- Three-phase
- Nominal power AC
- 6 000 W
- Maximum apparent power
- 6 600 VA
- Rated voltage AC
- 220 / 380 V, 230 / 400 V, 3 W / N + PE
- Network frequency
- 50 / 60 Hz
- Maximum output current
- 10.1 A
- Power factor
- 0.8 inductiv ... 0.8 capacitiv (reglabil)
- Current THD (THDi)
- ≤ 3 %
- Object back-up power
- 3 300 VA
- Back-up output voltage
- 220 / 230 V
- Maximum back-up output current
- 15 A
- Integrated protections
- integrated switch DC, anti-Icelandic, reverse polarity protection DC, isolation monitoring, overvoltage protection DC / AC (SPD type II), residual current monitoring, overcurrent protection, short circuit protection, overvoltage protection AC, electric arc protection (AFCI), integrated PID recovery function
- Operating temperature
- -25 °C ... +60 °C
- Relative humidity
- 0 – 100 % RH
- Altitudine
- 0 – 4 000 m (derating peste 2 000 m)
- Cooling
- Natural convection
- Dimensions (L × H × A)
- 525 × 470 × 146.5 mm
- Weight (with support)
- 17 kg
- Protection
- IP65
- Consum noaptea
- < 5.5 W
- Display and monitoring
- Status LEDs, integrated WLAN, FusionSolar application
- Communication interfaces
- RS485; WLAN / Ethernet by Smart Dongle; 4 G / 3 G / 2 G by Smart Dongle-4G (optional)
