Three-phase on- grid inverter Huawei SUN2000-12KTL-M5 · 12 kW
4 photosRated power12 kW
ConnectionThree-phase
TypeOn-grid
Description

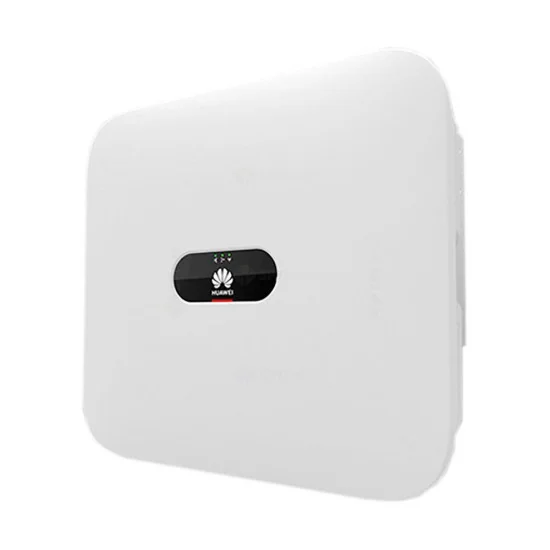

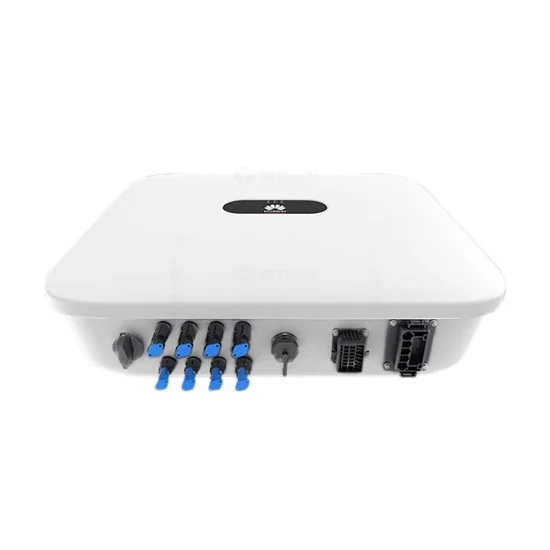

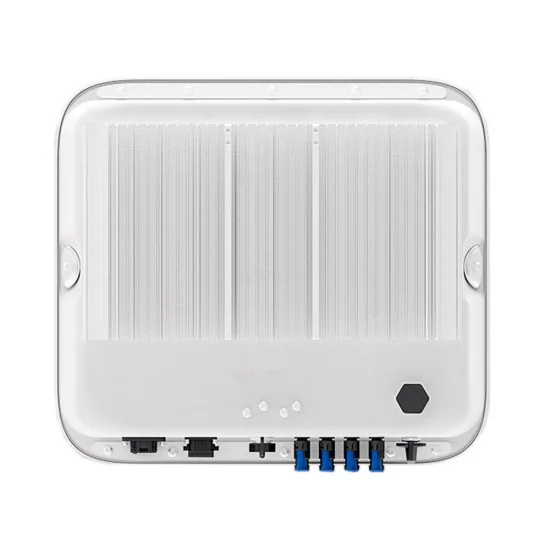

Inverter Huawei, model SUN2000-12KTL-M5. Nominal power 12 kW. On- grid, three-phase.
Trackers MPPT: 2. Maximum efficiency: 98.4%. Protection: IP66. Dimensions: 546 x 460 x 228 mm. Weight:
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-12KTL-M5
- Nominal filtering power
- 12 kW Power AC; not photovoltaic field power or extended configuration.
Efficiency
- Maximum efficiency
- 98.4%
- European efficiency (η Euro)
- 97.9%
Entry data DC (PV)
- Power PV
- 18.000 Wp
- Voltage DC maximum ²
- 1100 V
- Voltage range MPPT at rated load
- 370 V – 800 V
- Operating range MPPT ³
- 200 V – 1000 V
- Starting voltage
- 200 V
- Voltage DC nominal
- 600 V
- Maximum input current per MPPT
- 30 A (two strings) / 20 A (one string)
- Maximum short circuit current per MPPT
- 40 A
- Trackers number MPPT
- 2
- Maximum number of entries DC
- 4
Output data AC
- Network connection
- Triphase (3 W + N + PE)
- Rated output power
- 12.000 W
- Maximum apparent power
- 13.200 VA
- Rated voltage AC
- 220/380 Vac, 230/400 Vac, 239,6/415 Vac
- Rated Network Frequency
- 50 Hz / 60 Hz
- Maximum output current
- 18.2 A @ 380 Vac 17.3 A @ 400 Vac 16.7 A @ 415 Vac
- Adjustable power factor
- 0.8 in advance... 0.8 in late
- Current THD (at rated output)
- ≤ 3 %
Functions and protections
- Overvoltage category PV / AC
- PV: Clasa II / AC: Clasa III
- Device to disconnect on entry DC
- Da (integrat)
- Anti-insularisation protection
- Yes
- Overflow protection AC
- Yes
- Reverse polarity protection DC
- Yes
- Defective detection on the strings PV
- Yes
- Overvoltage protection DC (SPD)
- Tip II
- Overvoltage protection AC (SPD)
- Clasa II
- Remaining current monitoring unit
- Yes
- Electrical arc protection (AFCI)
- Yeah, spring protection with AI
- Control ripple / ripple control
- Yes
- Integrated PID Recovery Function
- Yes (for P-type modules)
Date generale
- Operating temperature range
- -25 °C ... +60 °C
- Accepted relative humidity
- 0% RH – 100% RH
- Maximum operating altitude
- 0 – 4000 m (derating peste 2000 m)
- Cooling
- Smart air cooling
- Local display and interface
- Status LEDs, integrated WLAN + FusionSolar application
- Comunicare
- RS485; WLAN / Ethernet by Smart Dongle-Wlan-FE (optional); 4 G / 3 G / 2 G by Smart Dongle-4G (optional)
- Weight (with installation plate)
- ≈ 21 kg
- Dimensions (l x h x A with installation plate)
- 546 x 460 x 228 mm
- Carcase protection grade
- IP66
Optimising compatibility and standards
- Optimizatoare compatible (DC MBUS)
- SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P, SUN2000-1100W-P, SUN2000-1300W-P
- Safety standard
- EN/IEC 62109-1, EN/IEC 62109-2
- Network connection standard (selection)
- G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, C10/11, VFR 2019, UNE 217001, UNE 217002, RD 244, TOR D4, IEC 61727, IEC 62116
