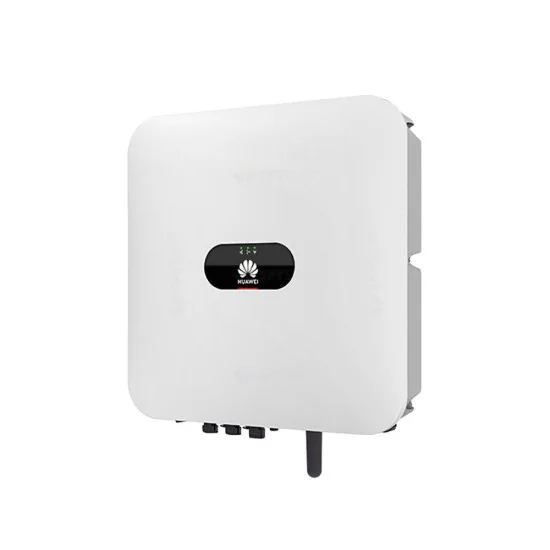

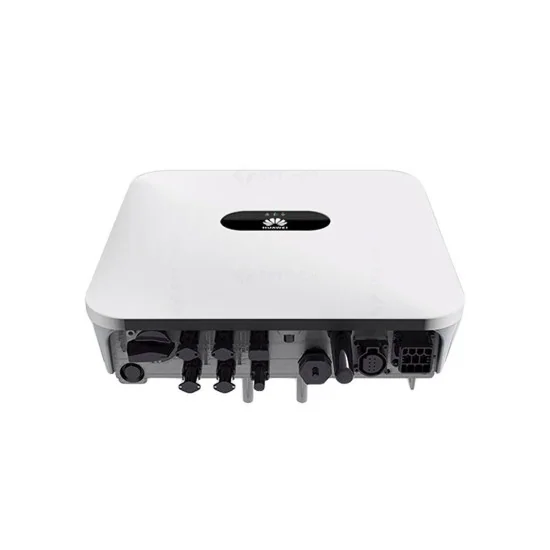

Three-phase hybrid inverter Huawei SUN2000-3KTL-M1 · 3 kW
4 photosRated power3 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Huawei, model SUN2000-3KTL-M1. Nominal power 3 kW. Hybrid, three-phase.
Trackers MPPT: 2 MPPT independent. Maximum efficiency: 98.3%.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-3KTL-M1
- Nominal filtering power
- 3 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Huawei SUN2000-3KTL-M1
- Inverter type
- Three-phase, on-grid / battery-ready
- Nominal power AC
- 3 000 W (3 kW)
- Maximum apparent power
- 3 300 VA
- Rated voltage AC
- 3 × 220 / 380 V or 230 / 400 V
- Nominal current AC
- ~ 5 A / phase
- Frequency
- 50 / 60 Hz
- THD harmonic distortion
- ≤ 3%
- Number MPPT
- 2 MPPT independent
- Number of strings PV
- 2 stringuri (1 per MPPT)
- Maximum voltage DC
- 1 100 V DC
- Interval MPPT
- 140 – 980 V
- Power PV recommended
- up to 4.5 kWp
- Maximum efficiency
- 98.3%
- European efficiency
- 97.5%
- Protection
- overvoltage AC / DC, overcurrent, short circuit, reverse polarity protection, insulation monitoring, electrical arc protection (AFCI), RCMU, anti-islanding
- Clasificare IP
- IP65 - interior / exterior mounting
- Cooling

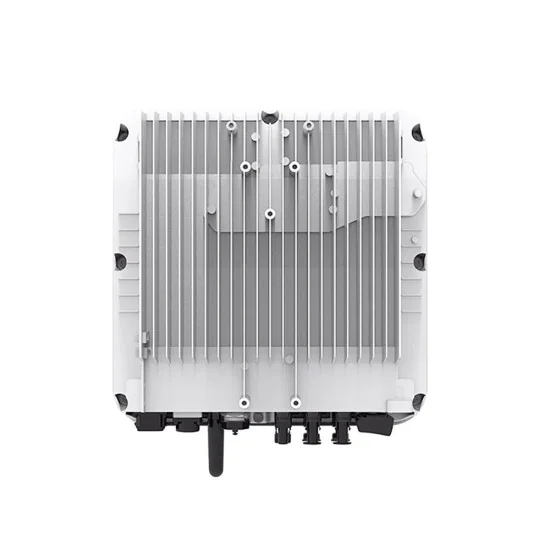

- Natural cooling (without fan)
- Operating temperature
- –25°C … +60°C
- Maximum altitude
- up to 4 000 m
- Interfaces
- RS485, WLAN / LAN (with Smart Dongle)
- Monitorizare
- FusionSolar App, Smart DongleA / Dongle 4 G (optional)
