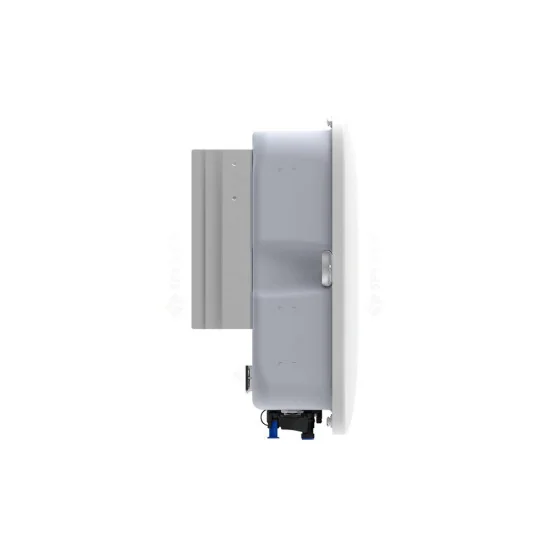

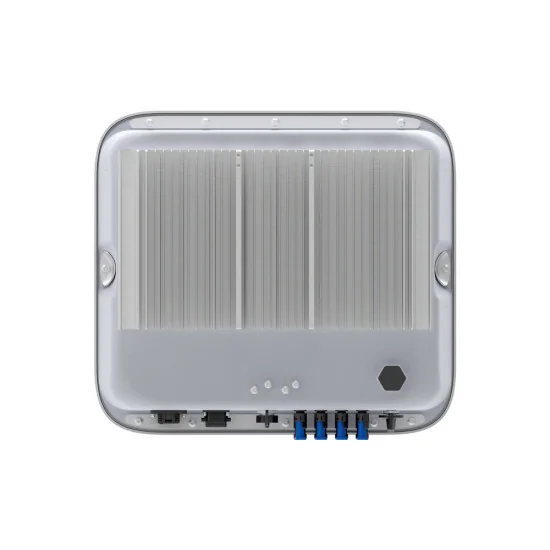

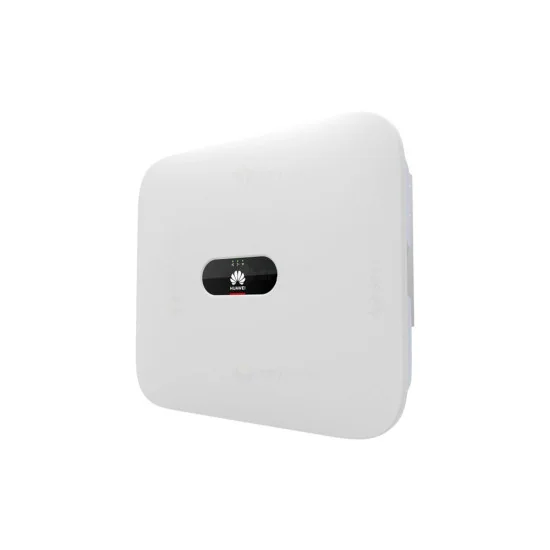

Three-phase on- grid inverter Huawei SUN2000-15KTL-M5 · 15 kW
4 photosRated power15 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Huawei, model SUN2000-15KTL-M5. Nominal power 15 kW. On- grid, three-phase.
Trackers MPPT: 2. Maximum efficiency: 98.40%. Protection: IP66. Dimensions: 546 x 460 x 228 mm. Weight: 21 kg.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
The photovoltaic field power was separated from the rated power AC according to sheet Huawei. The kW filter uses exclusively the rated output power.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-15KTL-M5
- Nominal filtering power
- 15 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Weight
- 21 kg
- Size
- 546 x 460 x 228 mm
- Power category
- 10-20 kW
- Inverter power
- 15 kW
- Maximum recommended power PV
- 22.5 kWp The power of the panel field; not the output power of the inverter. Checked on the attached sheet Huawei.
- Maximum inverter efficiency
- 98.40%
- Inverter wave type
- unda sinusoidala pura
- Inverter phase
- three-phase
- Number of MPPT inverter
- 2
- Working voltage MPPT inverter
- 200~1000V
- Max inverter input.
- 40A
- Max inverter input voltage
- 1100V
- Rated output power
- 15000W
- Max's output current.
- 25.2A/380Vac23.9A/400Vac23.1A/415Vac
- Total inverter harmonic distortion
- ≤ 3 %
- Inverter Protection Degree
- IP66
Manufacturer's technical file
- Maximum apparent power AC
- 16.5 kVA
