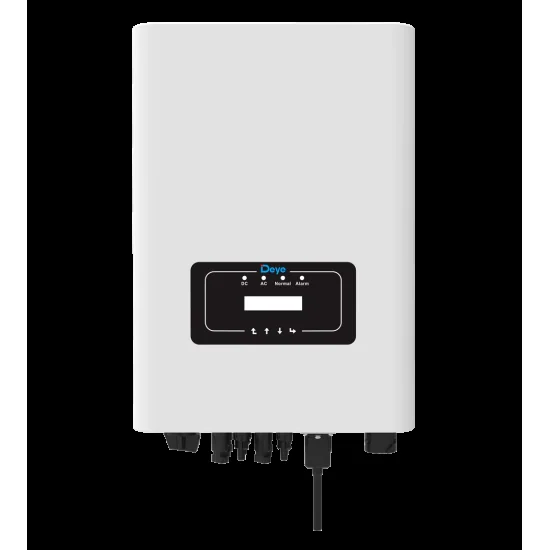

Three-phase on- grid inverter Deye SUN-25K-G05 · 25 kW
5 photosRated power25 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Deye, model SUN-25K-G05. Nominal power 25 kW. On- grid, three-phase.
Trackers MPPT: 2. Maximum efficiency: 98.5%. Protection: IP65. Dimensions: 362 × 527 × 220 mm. Weight: 20 kg.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-25K-G05
- Nominal filtering power
- 25 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Deye SUN-25K-G05
- Inverter type
- On-Grid three-phase
- Nominal power AC
- 25 kW
- Maximum apparent power
- 27.5 kVA
- Maximum efficiency
- 98.5%
- European efficiency
- 98%

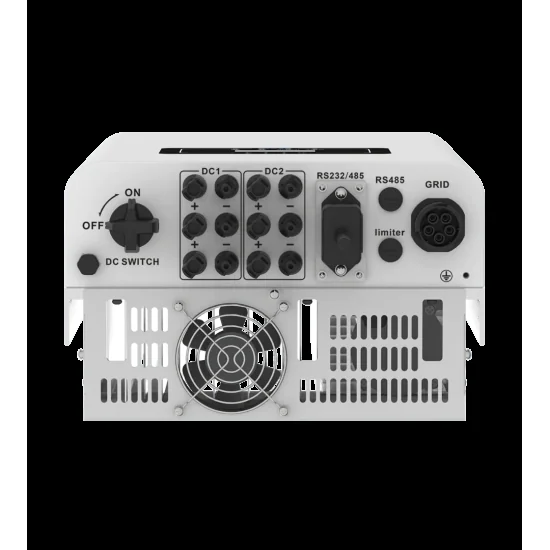

- Trackers number MPPT
- 2
- Number of strings
- 2 + 2
- Maximum voltage PV
- 1100 V
- Interval MPPT
- 200 – 1000 V
- Start voltage
- 250 V
- Maximum input current PV
- 26 + 26 A
- Maximum short circuit current
- 39 + 39 A
- Nominal current AC
- 37.9 / 36.2 A
- Maximum current AC
- 41.7 / 39.8 A
- Output voltage
- 220/380V, 230/400V
- Network frequency
- 50/60 Hz
- Power factor
- 0.8 leading – 0.8 lagging
- Overvoltage protection
- Type II DC / Type II AC
- Protection degree
- IP65
- Cooling
- Intelligent Air Cooling
- Topologie
- Non-Isolated
- Operating temperature
- -25°C ~ +60°C

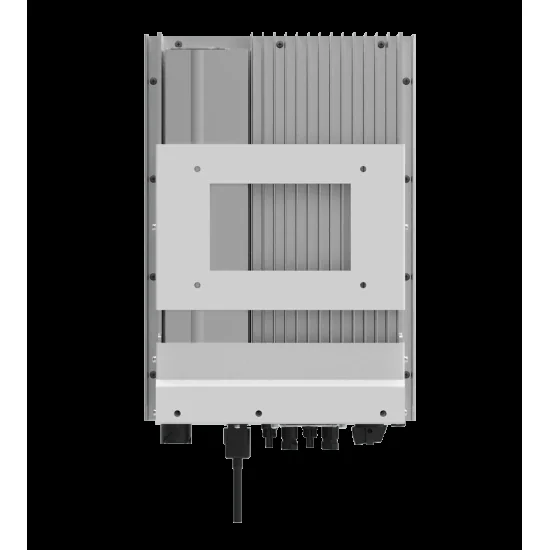

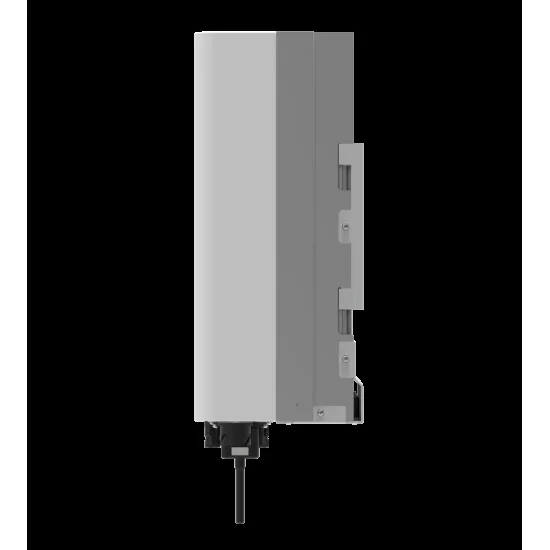

- Size
- 362 × 527 × 220 mm
- Weight
- 20 kg
- Comunicare
- RS485 / RS232
- Monitorizare
- WiFi / GPRS / LAN / Bluetooth / 4 G (optional)
- Guarantee
- 5 years
