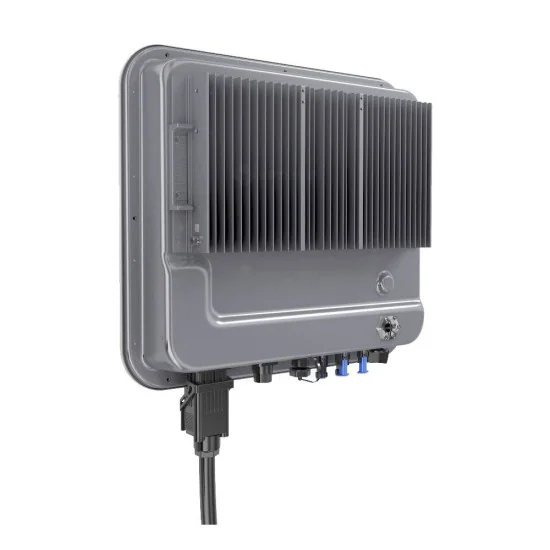

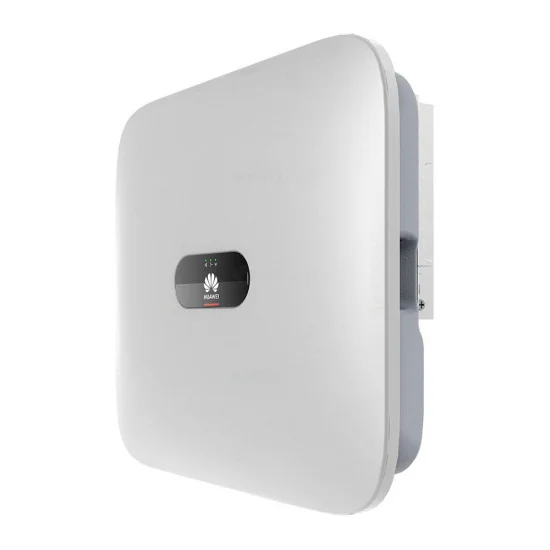

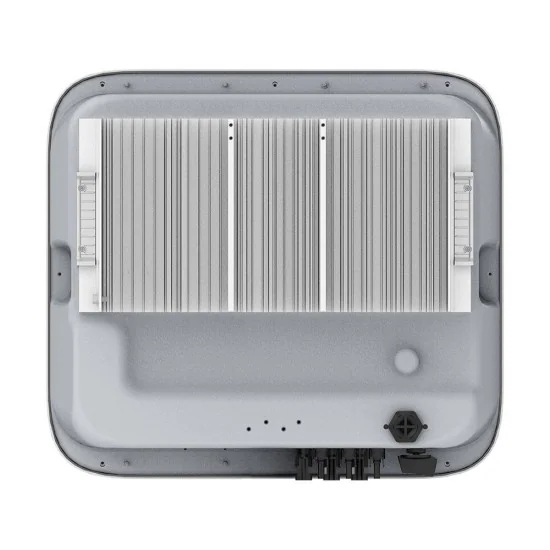

Three-phase hybrid inverter Huawei SUN2000-4KTL-M1 · 4 kW
4 photosRated power4 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Huawei, model SUN2000-4KTL-M1. Nominal power 4 kW. Hybrid, three-phase.
Trackers MPPT: 2 independent trackers MPPT. Maximum efficiency: at 98.3%.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-4KTL-M1
- Nominal filtering power
- 4 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Huawei SUN2000-4KTL-M1
- Inverter type
- Three-phase, on-grid / hybrid, battery-ready
- Nominal power AC
- 4 000 W (4 kW)
- Maximum apparent power
- 4 400 VA
- Rated voltage AC
- 3 × 220 / 380 V or 230 / 400 V (triphase)
- Nominal current AC / phase
- aprox. 6.1 A (380 V) / 5.8 A (400 V)
- Frequency AC
- 50 / 60 Hz
- Current THD (THDi)
- < 3 %
- Number MPPT
- 2 trackers MPPT independente
- Number of strings PV
- 2 stringuri (1 per MPPT)
- Maximum voltage DC
- 1 100 V DC
- Interval operare MPPT
- 140 – 980 V DC
- Maximum power PV recommended
- 6 000 Wp
- Maximum efficiency
- ≈ 98.3 %
- European efficiency
- ≈ 97.1 %
- Integrated protections
- anti-islanding, overvoltage AC / DC, short circuit, reverse polarity protection, residual current protection, electric arc detection (AFCI), SPD
- Carcase protection class
- IP65 (suitable for exterior / interior)
- Operating temperature
- -25 °C … +60 °C
- Maximum operating altitude
- up to 4 000 m
- Cooling
- Natural convection (without fan)
- Interfaces
- RS485, WLAN / Ethernet (Smart-Dongle)
- Battery compatibility / ESS
- Yes - Battery-Ready, compatible with solutions Huawei ESS
