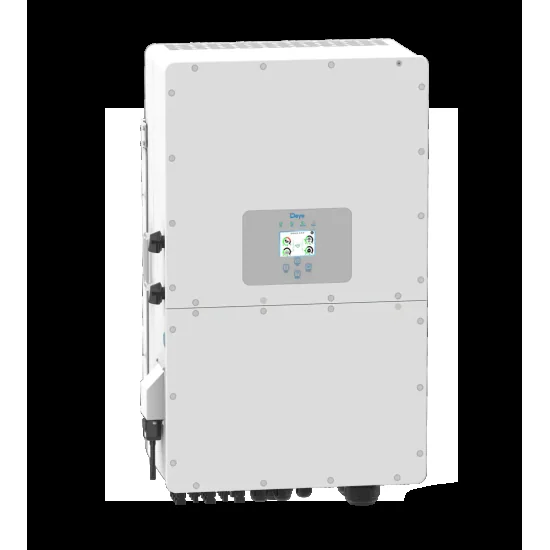

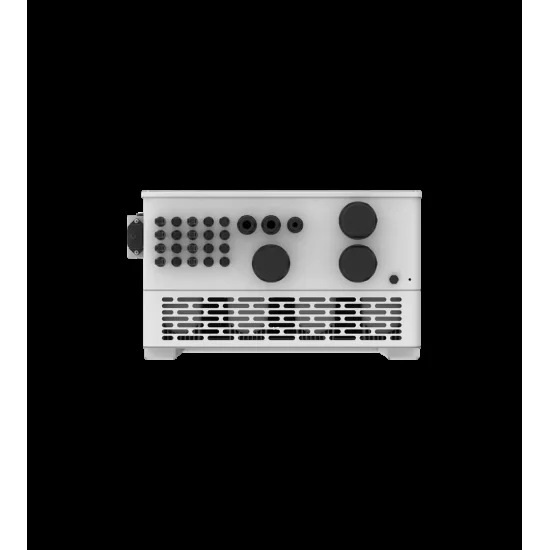

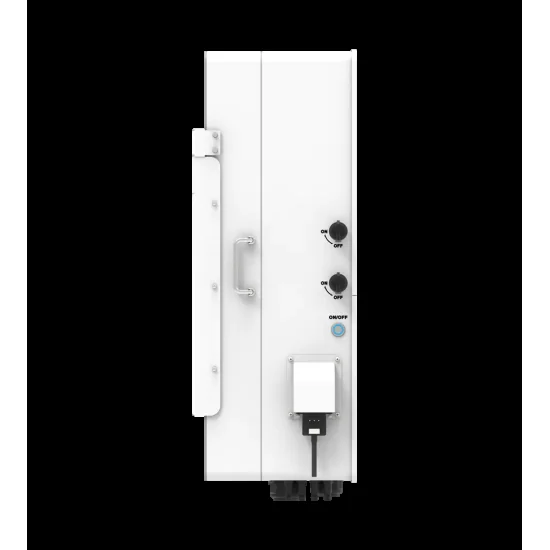

Three-phase hybrid inverter Deye SUN-30K-SG02HP3-EU-AM3 · 30 kW
5 photosRated power30 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Deye, model SUN-30K-SG02HP3-EU-AM3. Nominal power 30 kW. Hybrid, three-phase.
Trackers MPPT: 3 MPPT / 2 + 2 + 2 strings. Battery voltage: 160 -700 V DC. Maximum efficiency: 98.5%. Protection: IP65 - suitable for mounting inside or outside. Dimensions: 448 × 688 × 270 mm (without connectors and supports). Weight: 46 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-30K-SG02HP3-EU-AM3
- Nominal filtering power
- 30 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Deye SUN-30K-SG02HP3-EU-AM3
- Inverter type
- Three-phase hybrid inverter with high voltage batteries (HV)
- Battery type
- Lithium ion - batteries HV
- Battery voltage range
- 160-700 V DC
- Number of battery inputs
- 1 Battery input HV
- Maximum battery charge current
- 75 A
- Maximum battery discharge current
- 75 A
- Li- ion battery charging strategy
- Self-adaptation to BMS
- Maximum accessible power PV
- 60 000 W
- Maximum input power PV
- 48 000 W
- Maximum voltage PV
- 1000 V DC
- Starting voltage
- 180 V DC
- Interval MPPT
- 150-850 V DC
- Voltage DC nominal PV
- 600 V DC
- Maximum operating current PV
- 36 A + 36 A + 36 A
- Maximum short circuit current PV
- 54 A + 54 A + 54 A
- Trackers number MPPT / strings
- 3 MPPT / 2 + 2 + 2 stringuri
- Active power AC nominal input / output
- 30 000 W (30 kW)
- Maximum input / output AC
- 33 000 VA
- Current AC nominal input / output
- 45.5 A / 43.5 A
- Current AC maximum input / output
- 50 A / 47.9 A
- Passthrough AC maximum continuous (grid to load)
- 80 A
- Rated voltage AC
- 220 / 380 V or 230 / 400 V, 0.85 One -1.1 One, 3 L + N + PE
- Nominal network frequency / range
- 50 Hz / 45-55 Hz; 60 Hz / 55-65 Hz
- Power factor
- 0.8 leading up to 0.8 lagging
- THD(i)
- < 3% of rated power
- Injection current DC
- < 0.5 % In
- Dezechilibru faze
- 100 % unbalanced output permis
- Modules / operating functions
- On-grid, Off-grid, Hybrid, Back-up / EPS, AC-coupled, generator diesel
- Back-up / UPS
- Yes - automatic switching to batteries in case of network failure
- Paralelizare
- up to 10 parallel units for operation on-grid and off-grid
- Peak power (off-grid)
- 1.5 × rated power, 10 s
- Battery programming
- 6 battery charging / unloading intervals
- Maximum efficiency
- 98.5 %
- European efficiency
- 98.0 %
- Efficiency MPPT
- > 99 %
- Integrated protections
- reverse polarity protection DC / PV, overflow protection AC, Thermal protection, output overvoltage protection AC, output short circuit protection AC, component monitoring DC, optional AFCI, anti-Icelandic protection, switch DC, isolation impedance detection, residual current detection
- Overvoltage protection
- TYPE II (DC), TYPE II (AC)
- Carcase protection grade
- IP65 - suitable for mounting inside or outside
- Display
- LCD + LED
- Communication interfaces
- RS485, RS232, CAN
- Monitorizare
- GPRS / WiFi / Bluetooth / 4 G / LAN (optional)
- Operating temperature
- -40 °C … +60 °C (derating peste 45 °C)
- Ambient humidity allowed
- 0-100 %
- Altitude allowed
- 3000 m
- Cooling
- Intelligent Air Cooling
- Zgomot
- ≤ 55 dB
- Inverter Topology
- Non-isolated
- Categorie supratensiune
- OVC II (DC), OVC III (AC)
- Cabinet dimensions (L × Q × A)
- 448 × 688 × 270 mm (without connectors and supports)
- Weight
- 46 kg

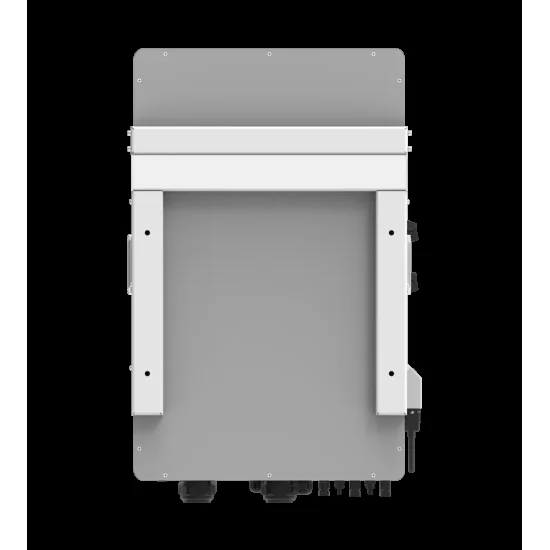

- Installation
- on the wall (wall- mount)
- Guarantee
- 5 years / 10 years, depending on the final installation location and guarantee policy
- Network regulations
- IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
- Safety / EMC standards
- IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
