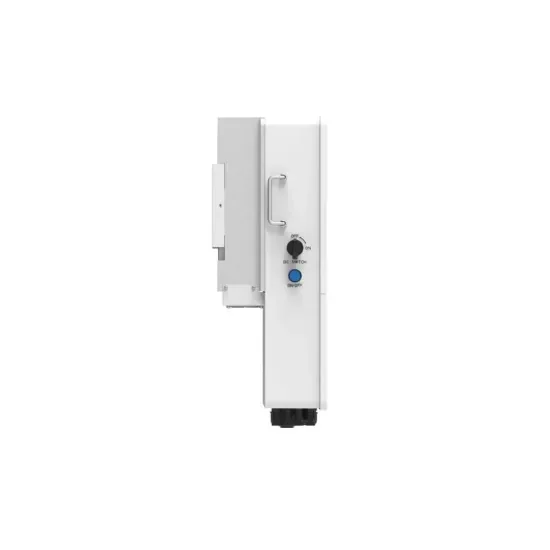

Three-phase hybrid inverter Deye SUN-10K-SG01HP3-EU-DM2 · 10 kW
2 photosRated power10 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Deye, model SUN-10K-SG01HP3-EU-DM2. Nominal power 10 kW. Hybrid, three-phase.
Battery voltage: 160 - 700 V. Maximum efficiency: 97.6%. Protection: IP65. Dimensions: 376 × 470 × 244.5 mm. Weight: 24.5 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-10K-SG01HP3-EU-DM2
- Nominal filtering power
- 10 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Battery type
- Lithium-ion
- Battery voltage
- 160 – 700 V
- Current max. battery charge
- 37 A
- Current max. battery discharge
- 37 A
- Battery inputs
- 1
- Maximum access power PV
- 20.000 W
- Maximum input power PV
- 16.000 W
- Maximum voltage PV
- 1000 V
- Start voltage
- 180 V
- Scope MPPT
- 150 – 850 V
- Current max. input PV
- 18 + 18 A
- Short circuit current PV
- 27 + 27 A
- MPPT / stringuri
- 2 / 1+1
- Nominal power AC
- 10.000 W
- Max apparent power.
- 11.000 VA
- Current AC nominal
- 15.2 / 14.5 A
- Maximum current AC
- 16.7 / 16 A
- Maximum efficiency
- 97.6%
- Randament european
- 97.0%
- Randament MPPT
- >99%
- Dimensions (L × H × A)
- 376 × 470 × 244.5 mm
- Weight
- 24.5 kg
- Cooling
- Natural
- Protection degree
- IP65
