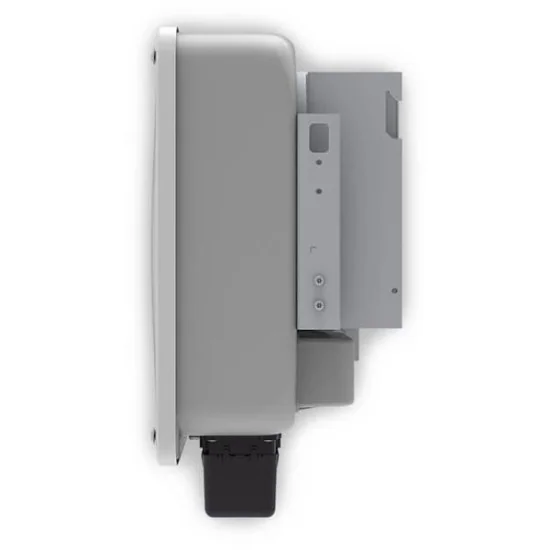

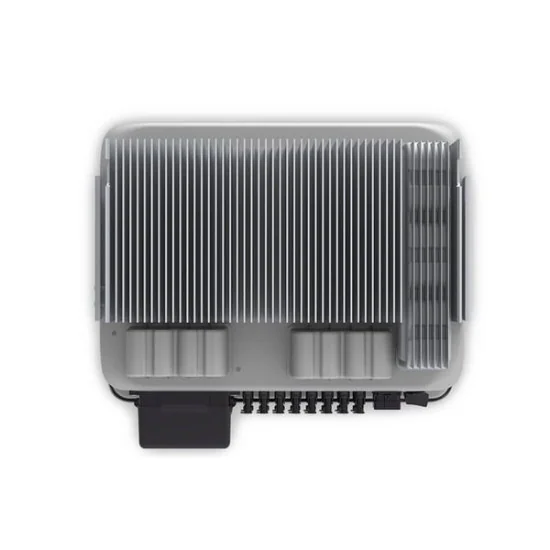

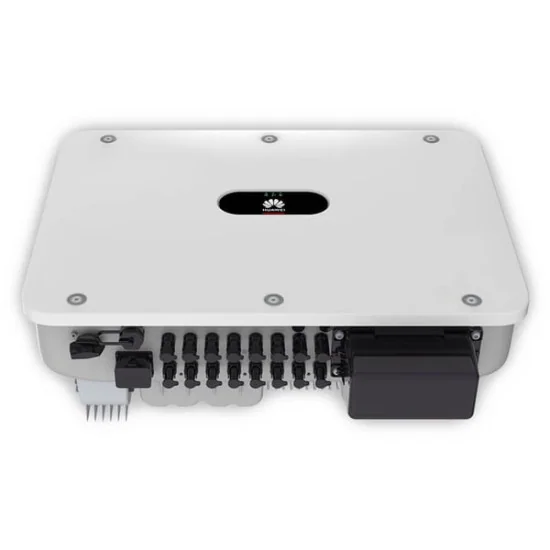

Three-phase on- grid inverter Huawei SUN2000-36KTL-M3 · 36 kW
4 photosRated power36 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Huawei, model SUN2000-36KTL-M3. Nominal power 36 kW. On- grid, three-phase.
Trackers MPPT: 4. Maximum efficiency: 98.70%. Protection: IP66. Dimensions: 64.0 × 53.0 × 27.0 cm. Weight: 43.0 kg.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
The maximum apparent power is 40 kVA, distinct from the rated active power of 36 kW, as shown in sheet Huawei M3.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-36KTL-M3
- Nominal filtering power
- 36 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Weight
- 43.0 kg
- Size
- 64.0 × 53.0 × 27.0 cm
- Power category
- 30~50 KW
- Inverter power
- 36.0 kW
- Maximum apparent power AC
- 40 kVA According to sheet Huawei SUN2000-36KTL-M3; the rated active power is 36 kW.
- Maximum inverter efficiency
- 98.70%
- Inverter wave type
- unda sinusoidala pura
- Inverter phase
- three-phase
- Number of MPPT inverter
- 4
- Working voltage MPPT inverter
- 200~1000 V
- Max inverter input.
- 26.0 A
- Max inverter input voltage
- 1100 V
- Rated output power
- 36.000 W
- Max's output current.
- 58.0 A
- Total inverter harmonic distortion
- ≤ 3 %
- Inverter Protection Degree
- IP66
