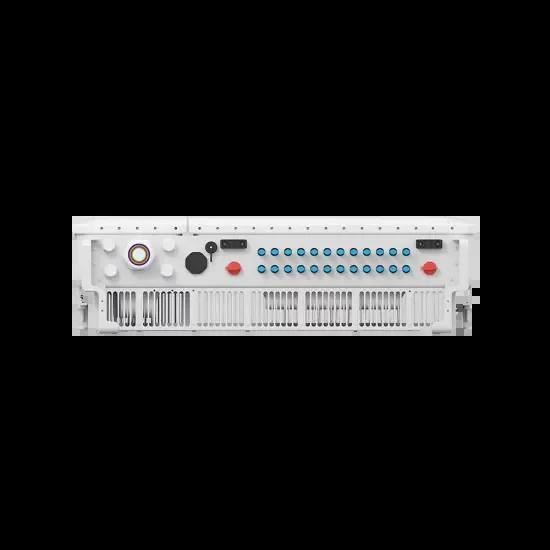

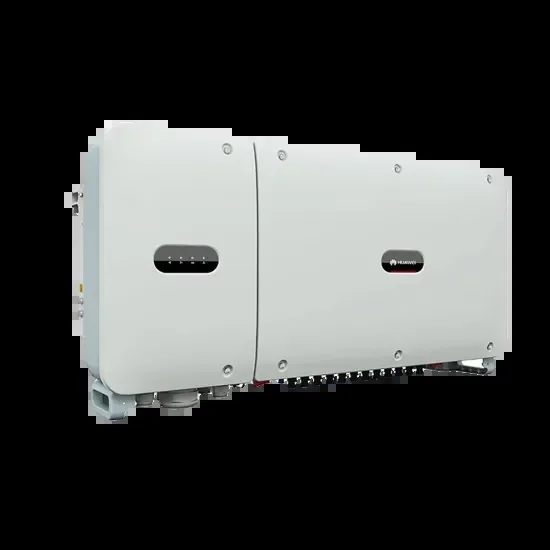

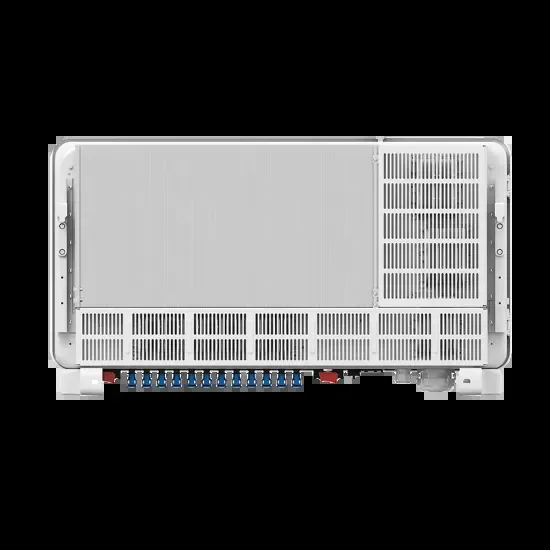

Three-phase on- grid inverter Huawei SUN2000-50KTL-M3 · 50 kW
4 photosRated power50 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Huawei, model SUN2000-50KTL-M3. Nominal power 50 kW. On- grid, three-phase.
Maximum efficiency: 98.5% / 98.0%. Protection: IP66. Dimensions: 640 × 530 × 270 mm. Weight: 49 kg, with installation plate.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-50KTL-M3
- Nominal filtering power
- 50 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Huawei SUN2000-50KTL-M3
- Type
- Triphase on- grid inverter
- Active power AC nominal
- 50.000 W
- Maximum active / apparent power AC
- 55.000 W / 55.000 VA
- Maximum / European efficiency
- 98.5% / 98.0%
- Maximum voltage DC
- 1.100 V
- Starting voltage
- 200 V
- Field MPPT / rated voltage
- 200–1.000 V / 600 V
- MPPT / inputs
- 4 / 8
- Maximum current per MPPT / per input
- 30 A / 20 A
- Short circuit current per MPPT
- 40 A
- Output voltage
- 400 / 480 V AC, 3 W + (N) + PE
- Nominal current
- 72.2 A to 400 V; 60.1 A to 480 V
- Maximum current
- 79.8 A to 400 V; 66.5 A to 480 V
- SPD protections
- Type II DC / Type II AC
- Communication
- RS485; Bluetooth + application; Smart Dongle optional
- Dimensions (L × Q × A)
- 640 × 530 × 270 mm
- Weight
- 49 kg, with installation plate
- Protection
- IP66
