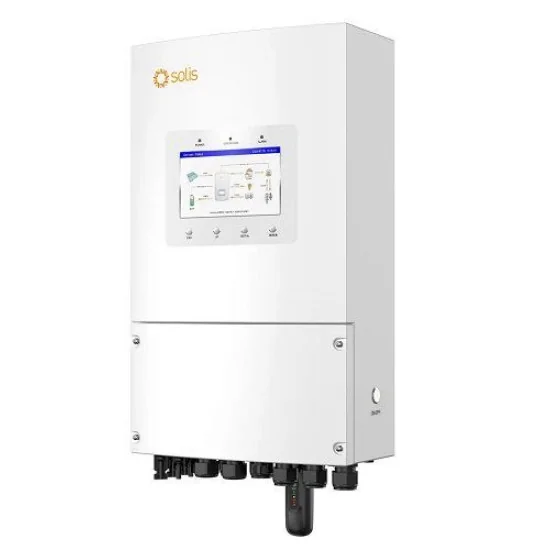

Single-phase hybrid inverter Solis S6-EH1P8K-L-PLUS · 8 kW
3 photosRated power8 kW
ConnectionSingle-phase
TypeHybrid
Description
Inverter Solis, model S6-EH1P8K-L-PLUS. Nominal power 8 kW. Hybrid, single-phase.
Trackers MPPT: 2 / 4. Battery voltage: 40 - 60 V. Maximum efficiency: 96.2%. Protection: IP66. Dimensions: 335 × 560 × 253 mm. Weight: 23.5 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Solis
- Model / reference
- S6-EH1P8K-L-PLUS
- Nominal filtering power
- 8 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- S6-EH1P8K-L-PLUS
- Maximum recommended power panels PV
- 16 kW
- Maximum input usable power PV
- 12.8 kW
- Maximum input voltage PV
- 500 V
- Rated voltage PV
- 330 V
- Starting voltage
- 90 V
- Voltage range MPPT
- 90 - 435 V
- Maximum input current PV
- 32 A / 32 A
- Maximum short circuit current PV
- 40 A / 40 A
- Number MPPT / maximum string number
- 2 / 4
- Battery type
- Lium ion / Plumb acid
- Battery voltage range
- 40 - 60 V
- Maximum load / discharge power
- 8 kW
- Maximum charge / download current
- 190 A
- Battery communication
- CAN / RS485
- Rated output power AC
- 8 kW
- Maximum apparent output power AC
- 8 kVA
- Operating phase
- L / N / PE
- Rated network voltage
- 220 V / 230 V
- Nominal network frequency
- 50 Hz / 60 Hz
- Rated current network output
- 36.4 A / 34.8 A
- Maximum output current AC
- 36.4 A / 34.8 A
- Power factor
- > 0.99 (0.8 leading - 0.8 lagging)
- THDi
- < 2%
- Input voltage range AC
- 187 - 253 V
- Maximum input current AC
- 50 A
- Frequency interval
- 45 - 55 Hz / 55 - 65 Hz
- Rated backup power
- 8 kW
- Maximum apparent backup power
- 2 x rated power, 10 seconds
- Timp comutare backup
- < 4 ms
- Rated voltage backup
- L / N / PE, 220 V / 230 V
- Nominal backup frequency
- 50 Hz / 60 Hz
- Nominal current backup
- 36.4 A / 34.8 A
- Maximum current AC passhrough
- 50 A
- THDv at linear load
- < 2%
- Maximum efficiency
- 96.2%
- European efficiency
- 96.1%
- Maximum battery load efficiency PV / AC
- 95.3% / 93.9%
- Maximum battery discharge efficiency to AC
- 93.8%
- Groundary defect protection
- Yes
- Reverse polarity protection DC
- Yes
- AFCI 2.0 integrat
- Optional
- Protection class / overvoltage category
- I / II (PV and BAT), III (MAINS, BACKUP and GEN)
- Dimensions L × H × A
- 335 × 560 × 253 mm
- Weight
- 23.5 kg
- Topologie
- High-frequency battery insulation
- Operating temperature
- -40 ~ +60°C
- Protection
- IP66
- Cooling
- Intelligent ventilation
- Maximum operating altitude
- 3000 m
- Network connection standards
- NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150
- Safety standards / EMC
- IEC/EN 62109-1/-2, EN 61000-6-2/-3

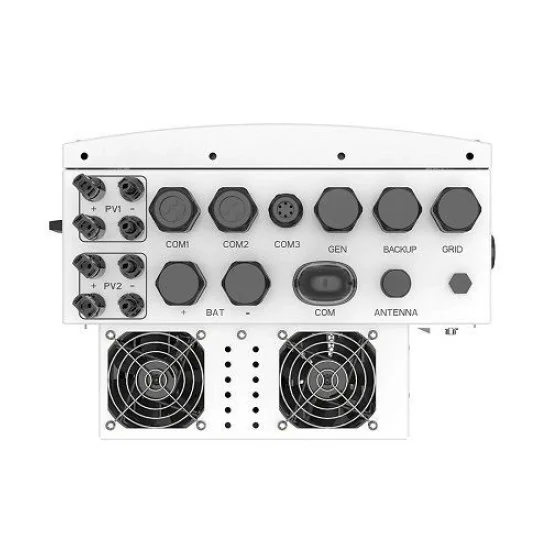

- Conexiune DC
- Connector MC4 for PV / Battery Block Terminal
- Conexiune AC
- Terminal Block
- Display
- Display LCD 7.0" & Bluetooth + APP
- Communications
- RS485, CAN; optional Wi-Fi, GPRS, LAN
