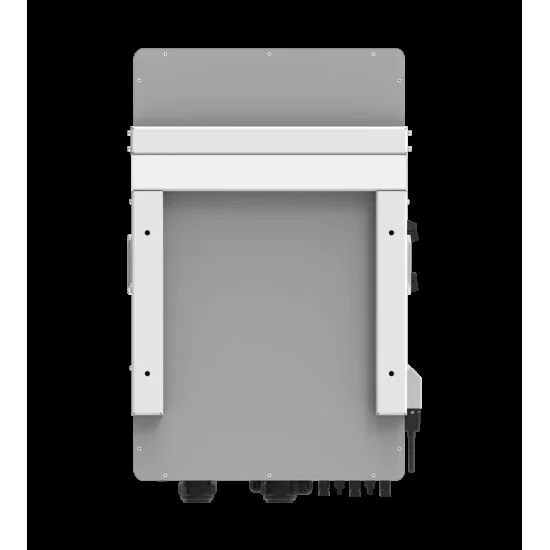

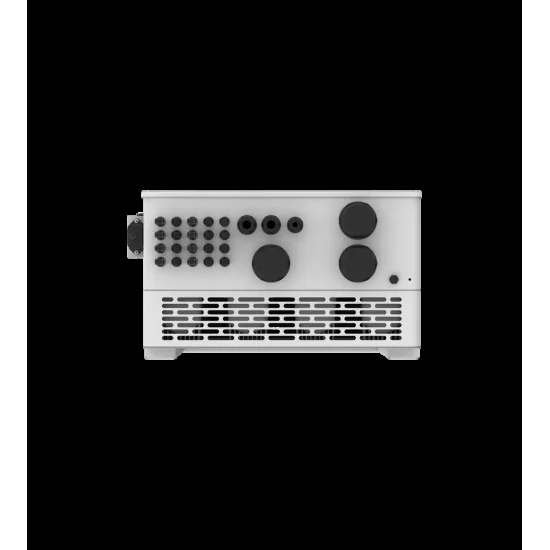

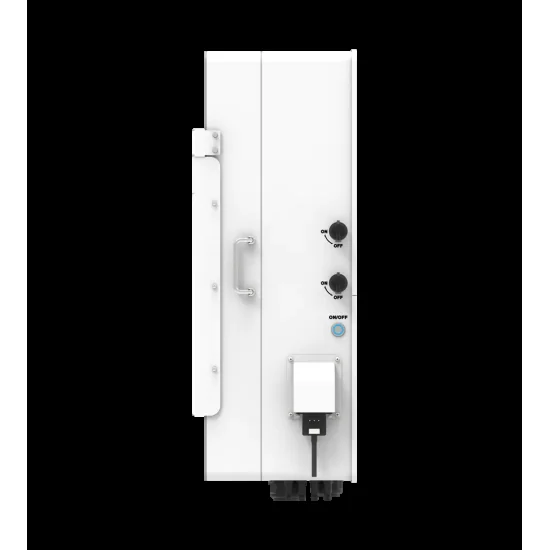

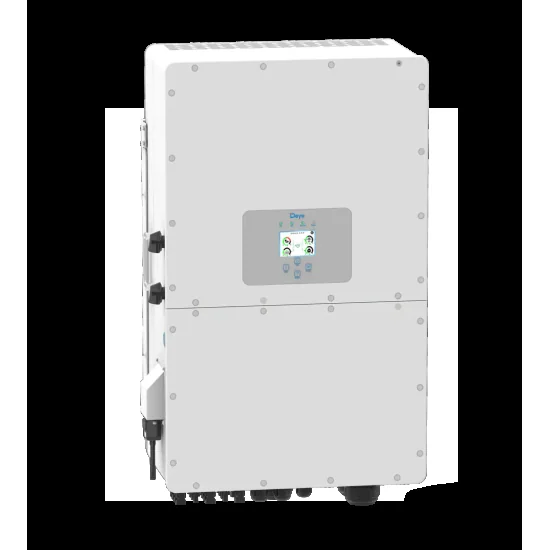

Three-phase hybrid inverter Deye SUN-50K-SG01HP3-EU-BM4 · 50 kW
5 photosRated power50 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Deye, model SUN-50K-SG01HP3-EU-BM4. Nominal power 50 kW. Hybrid, three-phase.
Trackers MPPT: 4. Battery voltage: 160 - 800 V DC. Maximum efficiency: 97.60%. Protection: IP65. Dimensions: 527 × 894 × 294 mm. Weight: 75 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-50K-SG01HP3-EU-BM4
- Nominal filtering power
- 50 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Deye SUN-50K-SG01HP3-EU-BM4
- Inverter type
- Three-phase hybrid inverter compatible with high voltage batteries (HV)
- Battery type
- Li-Ion
- Battery voltage range
- 160 – 800 V DC
- Number of battery inputs
- 2
- Maximum battery charge current
- 50 A + 50 A
- Maximum battery discharge current
- 50 A + 50 A
- Loading strategy Li- Ion
- Self-adaptation to BMS (Self-adaptation to BMS)
- Maximum power DC PV
- 65.000 W
- Maximum voltage PV
- 1000 V DC
- Starting voltage
- 180 V
- Interval MPPT
- 150 – 850 V DC
- Interval DC at full load
- 450 – 850 V DC
- Voltage DC nominal
- 600 V
- Trackers number MPPT
- 4
- Number of strings per MPPT
- 2
- Maximum current PV
- 36 A + 36 A + 36 A + 36 A
- Current PV of max short circuit.
- 55 A + 55 A + 55 A + 55 A
- Power AC rated / UPS
- 50.000 W
- Maximum power AC
- 55.000 W
- Current AC nominal
- 75.8 / 72.5 A
- Maximum current AC
- 83.3 A
- Max. AC passthrough continuu
- 150 A
- Generator input / Smart load / AC couple current
- 75.8 / 150 / 75.8 A
- Peak power (off-grid)
- 1.5 × rated power, 10 s
- Frequency and output voltage
- 50 / 60 Hz; 3 L / N / PE 220 / 380 V, 230 / 400 Vac
- Network type
- Three Phase
- Power factor
- 0.8 leading up to 0.8 lagging
- Injection current DC
- <0.5% In
- Maximum efficiency
- 97.60%
- European efficiency
- 97.00%
- Efficiency MPPT
- 99.90%
- Integrated protections
- PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection
- Output overvoltage protection
- DC Type II / AC Type III
- Network regulations
- EN50549, AS4777.2:2015, VDE0126-1-1, IEC61727, VDEN4105-2018, G99
- EMC / Safety Standards
- IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
- Operating temperature
- -40 ° C... +60 ° C, with a drift above 45 ° C
- Cooling
- Smart cooling
- Zgomot
- <45 dB
- Comunicare / BMS
- RS485; CAN
- Dimensions (L × Q × A)
- 527 × 894 × 294 mm
- Weight
- 75 kg
- Carcase protection grade
- IP65
- Installation
- Wall-mounted
- Guarantee
- 5 years
