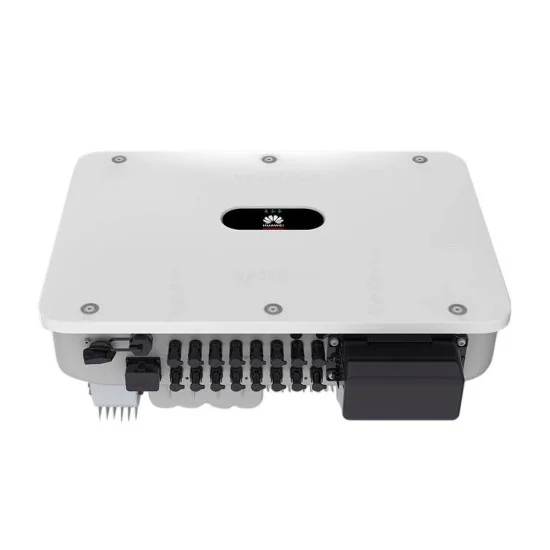

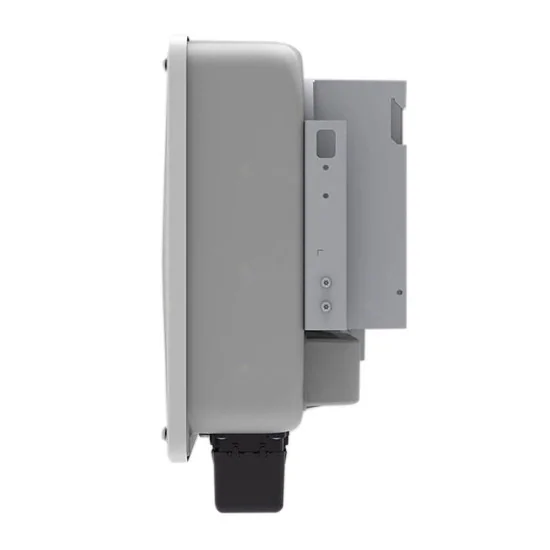

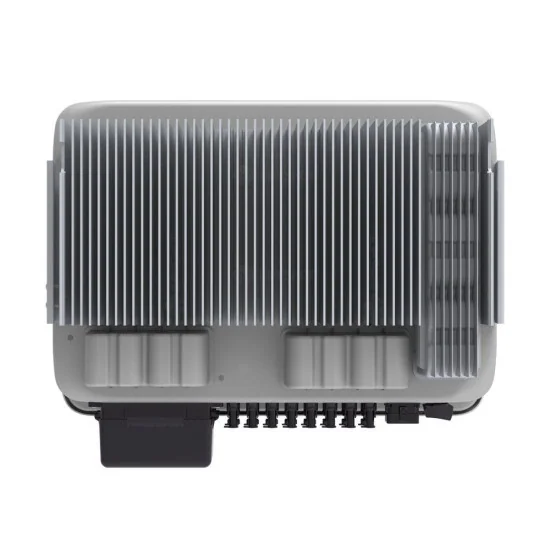

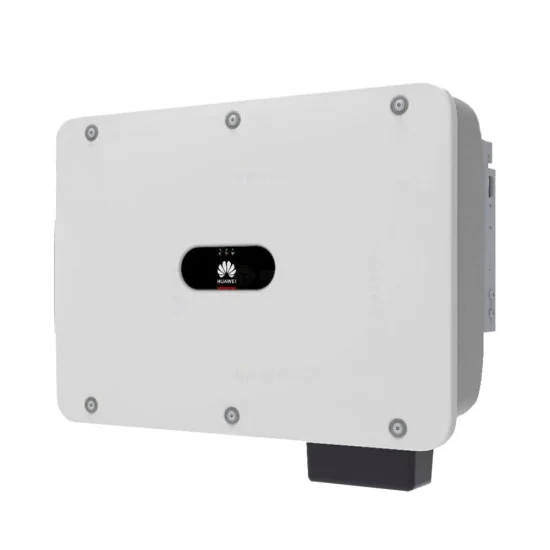

Three-phase on- grid inverter Huawei SUN2000-30KTL-M3 · 30 kW
5 photosRated power30 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Huawei, model SUN2000-30KTL-M3. Nominal power 30 kW. On- grid, three-phase.
Maximum efficiency: 98.7% / 98.4%. Protection: IP66. Dimensions: 640 × 530 × 270 mm. Weight: 43 kg, with installation plate.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-30KTL-M3
- Nominal filtering power
- 30 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Huawei SUN2000-30KTL-M3
- Type
- Triphase on- grid inverter
- Active power AC nominal
- 30.000 W
- Maximum apparent power AC
- 33.000 VA
- Maximum / European efficiency
- 98.7% / 98.4%
- Maximum voltage DC
- 1.100 V
- Starting voltage
- 200 V
- Field MPPT / rated voltage
- 200–1.000 V / 600 V
- MPPT / inputs
- 4 / 8
- Maximum current per MPPT / short circuit
- 26 A / 40 A
- Output voltage
- 230 / 400 / 480 V AC, 3 W / N + PE
- Nominal / maximum current
- 43.3 A / 47.9 A
- Maximum THD
- <3%
- Communication
- RS485; WLAN Integrated; FusionSolar; Smart Dongle Optional
- Dimensions (L × Q × A)
- 640 × 530 × 270 mm
- Weight
- 43 kg, with installation plate
- Operating temperature
- −25°C … +60°C
- Cooling
- Natural convection
- Protection
- IP66
