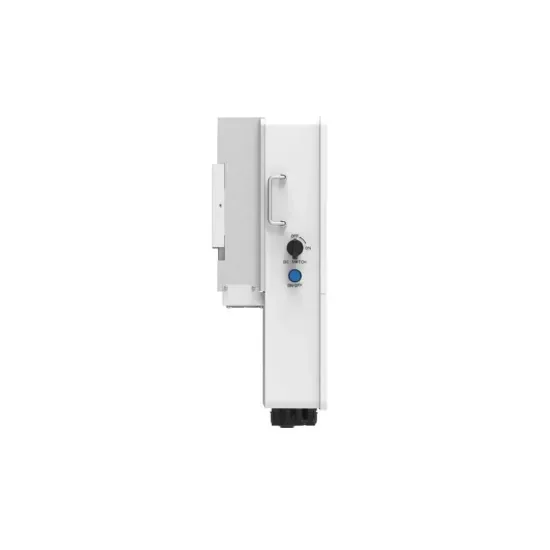

Three-phase hybrid inverter Deye SUN-12K-SG01HP3-EU-AM2 · 12 kW
2 photosRated power12 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Deye, model SUN-12K-SG01HP3-EU-AM2. Nominal power 12 kW. Hybrid, three-phase.
Battery voltage: 160 - 700 V. Maximum efficiency: 97.6% / 97.0% / 99.9%. Protection: IP65. Dimensions: 408 × 638 × 237 mm. Weight: 30.5 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-12K-SG01HP3-EU-AM2
- Nominal filtering power
- 12 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Deye SUN-12K-SG01HP3-EU-AM2
- Type
- Three-phase hybrid inverter, battery HV
- Battery voltage range
- 160–700 V
- Maximum charge / download current
- 37 A / 37 A
- Maximum power PV
- 15.600 W
- Maximum voltage PV / start
- 1.000 V / 180 V
- Domain MPPT / full load
- 150–850 V / 340–850 V
- Voltage PV nominal
- 600 V
- Current PV maximum / short circuit
- 26 + 20 A / 32 + 23 A
- MPPT / stringuri
- 2 / 2+1
- Nominal / maximum power AC
- 12.000 W / 13.200 W
- Nominal current AC
- 18.2 A to 380 V / 17.4 A to 400 V
- Maximum current AC
- 25 A
- Off-grid peak power
- 1.5 × rated power, 10 s
- Maximum / European / MPPT efficiency
- 97.6% / 97.0% / 99.9%
- Size
- 408 × 638 × 237 mm
- Weight
- 30.5 kg
- Protection
- IP65
