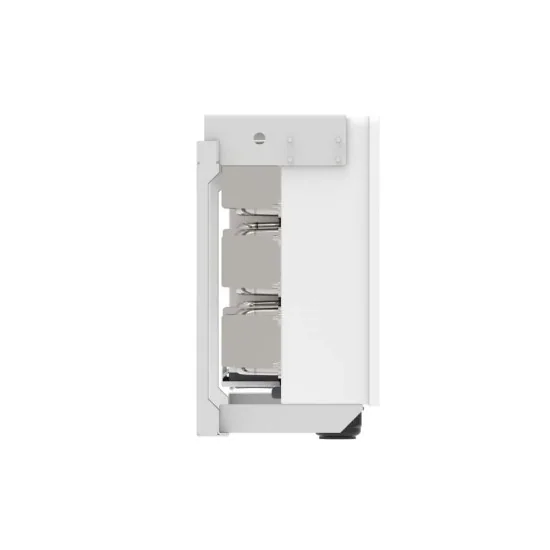

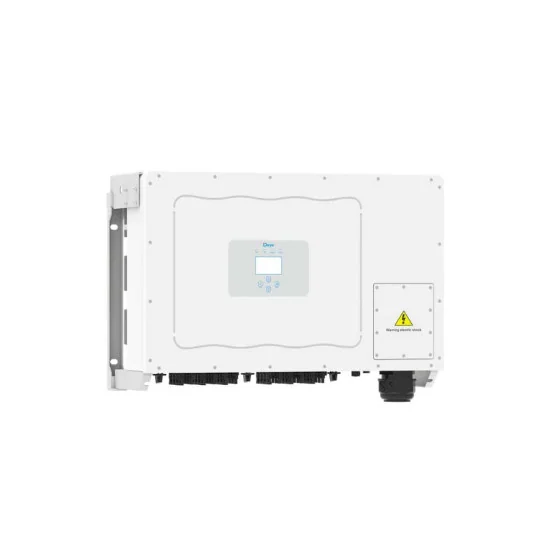

Three-phase on- grid inverter Deye SUN-110K-G03 · 110 kW
3 photosRated power110 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Deye, model SUN-110K-G03. Nominal power 110 kW. On- grid, three-phase.
Trackers MPPT: 6. Maximum efficiency: 98.8%. Protection: IP65. Dimensions: 826 × 516 × 312.7 mm. Weight: 81 kg.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-110K-G03
- Nominal filtering power
- 110 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Deye SUN-110K-G03
- Inverter type
- String three-phase
- Maximum power DC input
- 150 kW
- Maximum voltage DC
- 1000 V
- Start voltage DC
- 250 V
- Scope MPPT
- 200–850 V
- Maximum current DC input
- 40 + 40 + 40 + 40 + 40 + 40 A
- Maximum short circuit current
- 60 + 60 + 60 + 60 + 60 + 60 A
- Number MPPT
- 6
- Number of strings per MPPT
- 4 + 4 + 4 + 4 + 4 + 4
- Rated output power AC
- 110 kW
- Maximum active power
- 121 kW
- Rated voltage AC / range
- 3 L / N / PE 220 / 380 V, 230 / 400 V
- Network frequency
- 50 / 60 Hz, optional
- Phase
- Three-phase
- Rated output current AC
- 166.7 / 159.4 A
- Maximum output current AC
- 183.3 / 175.4 A
- Power factor
- 0.8 leading – 0.8 lagging
- THDi
- <3%
- Maximum efficiency
- 98.8%
- European efficiency
- 98.3%
- Efficiency MPPT
- >99%
- Overvoltage protection
- DC Type II / AC Type II
- Size
- 826 × 516 × 312.7 mm
- Weight
- 81 kg
- Topologie
- No transformer
- Consum intern noaptea
- <1 W
- Working temperature
- -25°C – 65°C, derating peste 45°C
- Protection degree
- IP65
- Altitude allowed
- 4000 m
- Zgomot tipic
- ≤55 dB
- Cooling
- Smart Cooling
- Guarantee
- 5 years
- Display
- LCD 240 × 160
- Interface
- RS485 / RS232 / WiFi / LAN
