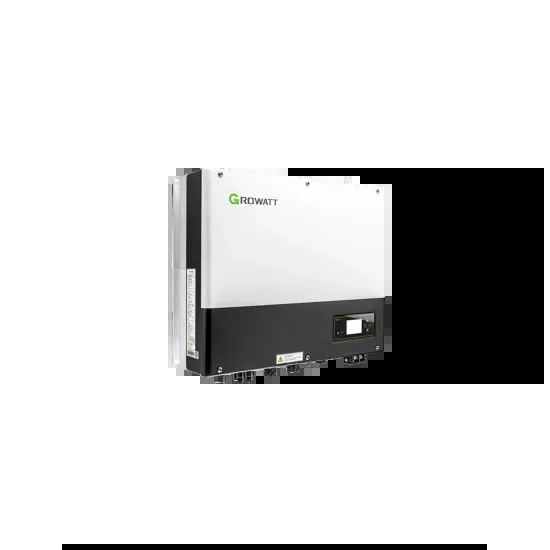

Three-phase hybrid inverter Growatt SPH 8000 TL 3 BH-UP · 8 kW
2 photosRated power8 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Growatt, SPH model 8000 TL 3 BH-UP. Nominal power 8 kW. Hybrid, three-phase.
Trackers MPPT: 2 independent trackers. Battery voltage: 100 - 550 V DC. Maximum efficiency: at 98.2%. Dimensions 505 × 453 × 198 mm. Weight:
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Growatt
- Model / reference
- SPH 8000TL3 BH-UP
- Nominal filtering power
- 8 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Growatt SPH 8000TL3-BH-UP
- Inverter type
- Three-phase hybrid 3 -medication, compatible batteries (on-grid & hybrid storage)
- Maximum recommended power PV
- ≈ 12 000 W (module STC)
- Maximum voltage DC
- 1 000 V DC
- Interval MPPT / start voltage
- 120 V … 1 000 V DC (MPP range)
- Number MPPT
- 2 independent trackers
- Stringuri per MPPT
- 1 string / MPPT
- Nominal power AC
- 8 000 W (8 000 VA)
- Output voltage AC
- 400 V (triphase) / 230 V (per phase)
- Nominal output current per phase
- ≈ 12.1 A
- Frequency AC
- 50 / 60 Hz
- Adjustable power factor
- 0.8 leading … 0.8 lagging
- Accepted battery voltage
- 100 – 550 V DC
- Accessible Batteries Type
- Lithium (Li- ion / LiFePO) or lead-acid / GEL
- Maximum current charging / discharge batteries
- up to 25 A
- Maximum inverter efficiency
- ≈ 98.2 %
- Total harmonic distortion (THDi)
- < 3 %
- Special functions
- Three-phase output with possible unbalanced phases, limitation of energy export per phase, output EPS / back-up, UPS function (transfer < 10 ms), VPP compatible, smart load management via dry contact, monitoring & control, passive cooling (without fan), protections AC / DC + SPD type II
- Carcase protection
- IP65 - internal or external mounting
- Dimensions (L × Q × A)
- ≈ 505 × 453 × 198 mm
- Weight
- ≈ 30 kg
- Cooling mode
- Natural convection (fanless)
- Interfaces / communication
- RS485, USB, optional WiFi / 4 G / GPRS / monitoring module, export limitation support and integrated storage system
