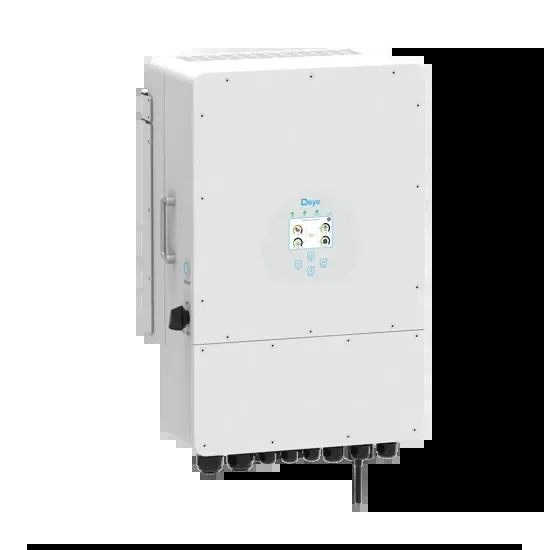

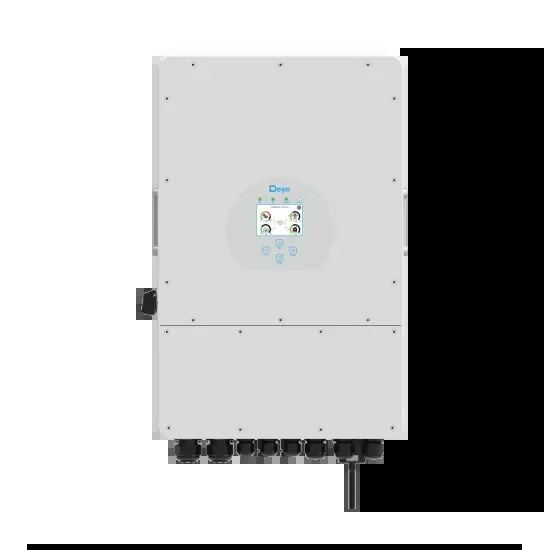

Three-phase hybrid inverter Deye SUN-5K-SG05LP3-EU · 5 kW
3 photosRated power5 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Deye, model SUN-5K-SG05LP3-EU. Nominal power 5 kW. Hybrid, three-phase.
Trackers MPPT: 2 MPPT. Battery voltage: 48 V Low Voltage. Protection: IP65.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-5K-SG05LP3-EU
- Nominal filtering power
- 5 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- DEYE SUN-5K-SG05LP3-EU-SM2
- Inverter type
- Three-phase hybrid inverter
- Nominal power AC
- 5 kW
- Battery voltage
- 48V Low Voltage
- Number MPPT
- 2 MPPT
- Maximum charge / download current
- 120A
- Backup operation
- Yes
- Paralelizare
- Up to 10 units
- Comunicare
- CAN / RS485 / WiFi (optional)
- Protection degree
- IP65
- Accumulator compatibility
- Deye, Pytes, Felicity, Dyness and other compatible models CAN / RS485
