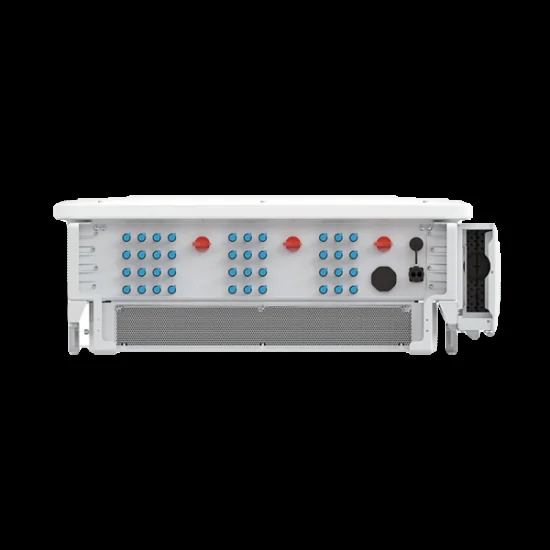

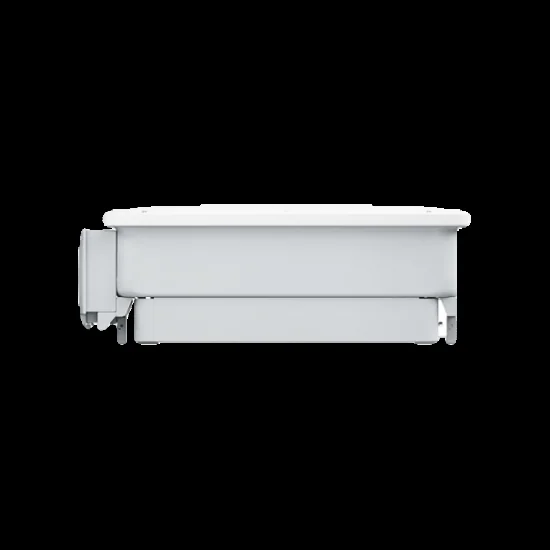

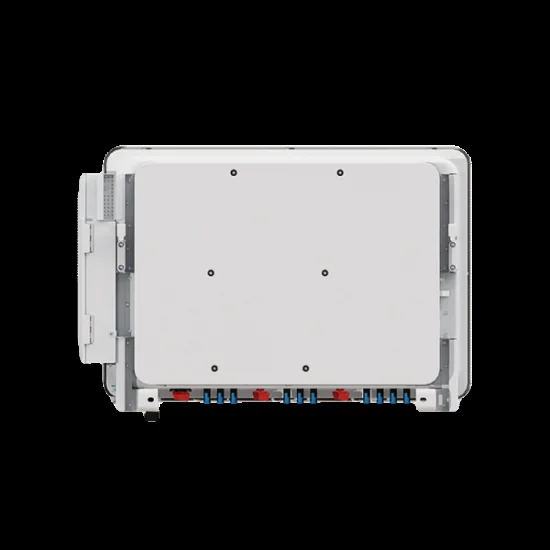

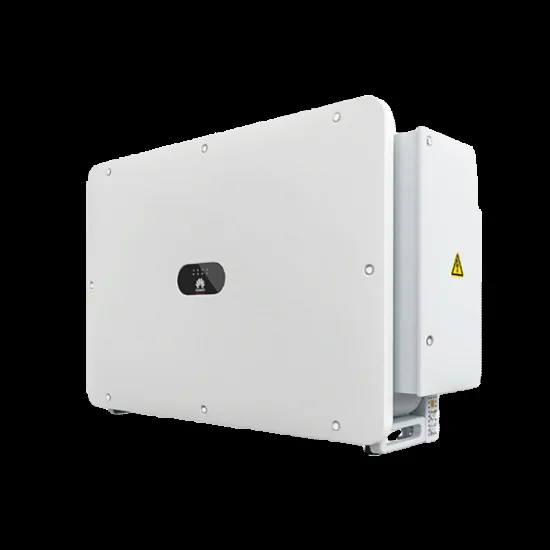

Three-phase on- grid inverter Huawei SUN2000-100KTL-M2 · 100 kW
5 photosRated power100 kW
ConnectionThree-phase
TypeOn-grid
Description
Inverter Huawei, model SUN2000-100KTL-M2. Nominal power 100 kW. On- grid, three-phase.
Trackers MPPT: 10 / 2. Maximum efficiency: 98.6% at 400 V; 98.8% at 480 V. Protection: IP66. Dimensions: 1.035 × 700 × 365 mm. Weight: 93 kg, with installation plate.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-100KTL-M2
- Nominal filtering power
- 100 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Model
- Huawei SUN2000-100KTL-M2
- Active power AC nominal
- 100.000 W
- Maximum active / apparent power AC
- 110.000 W / 110.000 VA
- Maximum efficiency
- 98.6% to 400 V; 98.8% to 480 V
- Randament european
- 98.4% to 400 V; 98.6% to 480 V
- Maximum voltage DC
- 1.100 V
- Starting voltage
- 200 V
- Scope MPPT
- 200–1.000 V
- Trackers MPPT / maximum inputs per MPPT
- 10 / 2
- Maximum current per MPPT / input
- 30 A / 20 A
- Short circuit current per MPPT
- 40 A
- Rated output voltage
- 380 / 400 / 480 V, 3 W + (N) + PE
- Nominal current
- 144.4 A to 400 V; 120.3 A to 480 V
- Maximum current
- 160.4 A to 400 V; 133.7 A to 480 V
- SPD protections
- Type II DC / Type II AC
- Dimensions (L × Q × A)
- 1.035 × 700 × 365 mm
- Weight
- 93 kg, with installation plate
- Protection
- IP66
