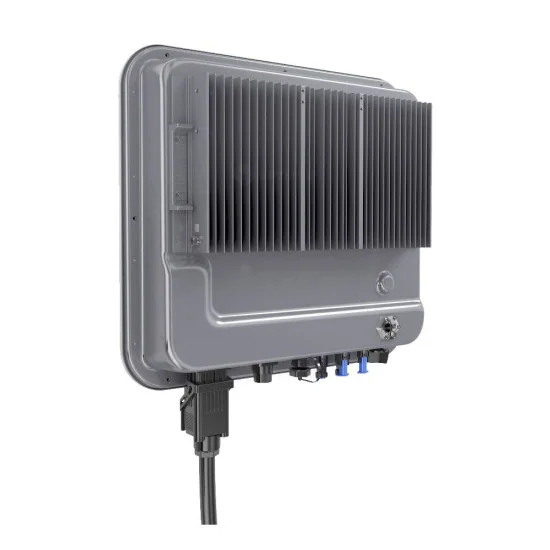

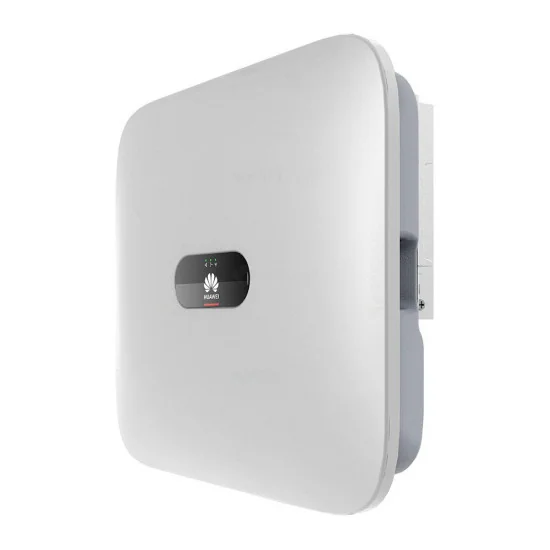

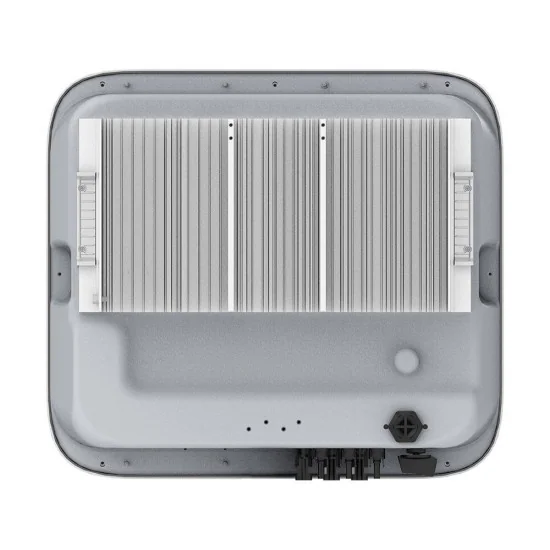

Three-phase hybrid inverter Huawei SUN2000-10KTL-M1 · 10 kW
4 photosRated power10 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Huawei, model SUN2000-10KTL-M1. Nominal power 10 kW. Hybrid, three-phase.
Trackers MPPT: 2. Maximum efficiency: 98.6%. Protection: IP65. Dimensions: 525 x 470 x 146.5 mm. Weight: 17 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
The maximum output current is 16.9 A according to the model column on sheet Huawei M1.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-10KTL-M1
- Nominal filtering power
- 10 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications Huawei SUN2000-10KTL-M1
- Rated output power
- 10.000 W
- Maximum recommended FV power
- 15.000 Wp
- Maximum efficiency
- 98.6%
- Weighted European efficiency
- 98.1%
- Maximum input voltage
- 1.100 V
- Operating voltage range
- 140 V ~ 980 V
- Starting voltage
- 200 V
- Number of trackers MPPT
- 2
- Maximum input current per MPPT
- 11 A
- Battery compatibility
- HUAWEI Smart String ESS 5kWh – 30kWh
- Maximum load / discharge power
- 10.000 W
- Network connection
- Triphased (220 V / 380 V, 230 V / 400 V)
- Maximum output current
- 16.9 A Value for the model listed, checked in sheet Huawei M1 v20201006.
- Adjustable power factor
- 0.8 forward phase... 0.8 backward phase phase
- Total harmonic distortion
- ≤ 3%
- Overvoltage protection
- DA, TIP II conform EN / IEC 61643-11
- Protection
- IP65
- Operating temperature range
- -25°C ~ +60°C
- Cooling
- Natural convection
- Dimensions (L x l x h)
- 525 x 470 x 146.5 mm
- Weight
- 17 kg
- Communication interfaces
- RS485, WLAN / Ethernet by smart dongle, 4 G (optional)
