Three-phase hybrid inverter Huawei SUN2000-8KTL-M1 · 8 kW
3 photosDescription

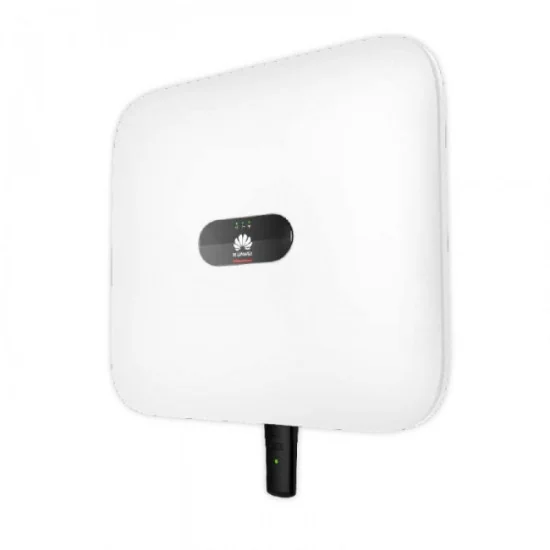

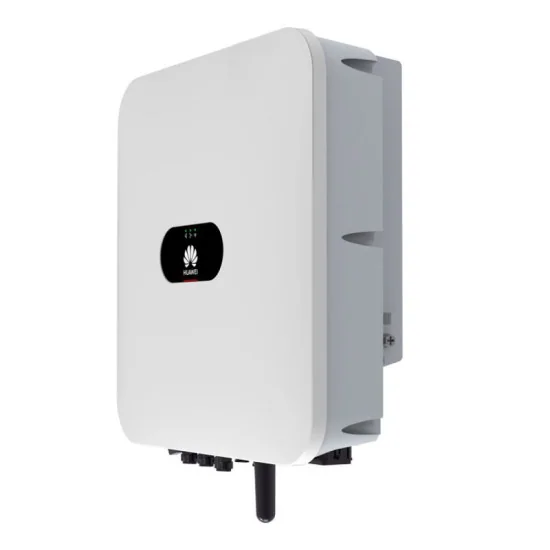

Inverter Huawei, model SUN2000-8KTL-M1. Nominal power 8 kW. Hybrid, three-phase.
Trackers MPPT: 2. Maximum efficiency: 98.60%. Protection: IP65. Dimensions: 52.5 × 47.0 × 14.6 cm. Weight: 17 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
The photovoltaic field power was separated from the rated power AC according to sheet Huawei. The kW filter uses exclusively the rated output power.
The maximum output current is 13.5 A according to the model column on sheet Huawei M1.
Technical specifications
Identification
- Manufacturer
- Huawei
- Model / reference
- SUN2000-8KTL-M1
- Nominal filtering power
- 8 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Weight
- 17 kg
- Size
- 52.5 × 47.0 × 14.6 cm
- Power category
- 5~10KW
- Inverter power
- 8.0 kW
- Maximum recommended power PV
- 12 kWp The power of the panel field; not the output power of the inverter. Checked on the attached sheet Huawei.
- Maximum inverter efficiency
- 98.60%
- Inverter wave type
- unda sinusoidala pura
- Inverter phase
- three-phase
- Number of MPPT inverter
- 2
- Working voltage MPPT inverter
- 140~980V
- Max inverter input.
- 15.0A
- Max inverter input voltage
- 1100V
- Rated output power
- 8000W
- Max's output current.
- 13.5 A Value for the model listed, checked in sheet Huawei M1 v20201006.
- Total inverter harmonic distortion
- ≤ 3 %
- Inverter Protection Degree
- IP65
Manufacturer's technical file
- Maximum apparent power AC
- 8.8 kVA
