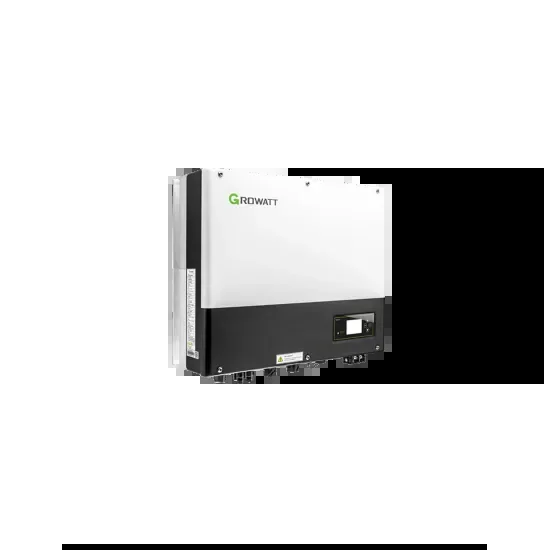

Three-phase hybrid inverter Growatt SPH 10000 TL 3 BH-UP · 10 kW
2 photosRated power10 kW
ConnectionThree-phase
TypeHybrid
Description
Inverter Growatt, SPH model 10000 TL 3 BH-UP. Nominal power 10 kW. Hybrid, three-phase.
Trackers MPPT: 2. Battery voltage: 100 - 550 V. Maximum efficiency: 98.2%. Protection: IP65. Dimensions: 505 / 453 / 198 mm. Weight: 30 kg.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Growatt
- Model / reference
- SPH 10000TL3 BH-UP
- Nominal filtering power
- 10 kW Power AC; not photovoltaic field power or extended configuration.
Technical specifications
- Recommended FV power (STC)
- 15000 W
- Maximum voltage DC
- 1000 V
- Starting voltage
- 120 V
- PMPP voltage range
- 120–1000 V / 600 V
- Number MPPT
- 2
- Stringuri per MPPT
- 1
- Current max. input per MPPT
- 13.5 A
- Current max. short circuit per MPPT
- 16.9 A
- Rated power AC (on-grid)
- 10000 W
- Max apparent power. AC
- 10000 VA
- Rated voltage AC (range)
- 230/400 V (310–476 V)
- Network frequency (range)
- 50/60 Hz (45–55 Hz / 55–65 Hz)
- Current max. output AC
- 15.2 A
- Adjustable power factor
- 0.8 (leading) … 0.8 (lagging)
- THDi
- <3%
- Network connection type
- 3 W + N + PE
- Battery voltage range
- 100–550 V
- Current max. charge / download
- 25 A
- Continuous load / download power
- 10000 W
- Battery type
- Lithium / Lead-acid
- Maximum power. AC backup
- 10000 W
- apparent max. backup power
- 10000 VA
- Current max. backup output
- 15.2 A
- Rated voltage backup
- 230/400 V
- Nominal backup frequency
- 50/60 Hz
- THDv (backup)
- <3%
- Timp comutare (UPS)
- <10 ms
- Maximum efficiency
- 98.2%
- European efficiency
- 97.5%
- Battery discharge efficiency (Euro)
- 97.4%
- Efficiency MPPT
- 99.9%
- Overvoltage protection AC / DC
- SPD Tip II
- DC switch
- Yes
- Reverse polarity protection DC
- Yes
- Battery reversing protection
- Yes
- Short circuit protection AC
- Yes
- Earth / Network / Anti-Icelandic defective monitoring
- Yes
- RCD / residual current monitoring
- Yes
- Isolation resistance monitoring
- Yes
- Dimensions (L / Q / A)
- 505 / 453 / 198 mm
- Weight
- 30 kg
- Operating temperature
- −25°C … +60°C
- Consum nocturn
- <13 W
- Topologie
- Not transformer (Transformer)
- Cooling
- Natural
- Protection degree
- IP65
- Altitudine max.
- 3000 m
- Connectors DC
- H4 / MC4 (optional)
- Display
- LCD + LED
- Interfaces
- RS485 / CAN / USB (Da)
- Monitorizare
- RF / WiFi / GPRS (optional)
- Guarantee
- 5 years / 10 years (Yes / optional)
