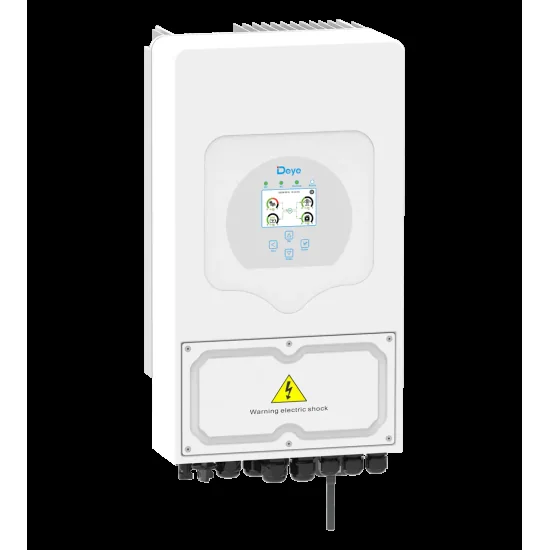

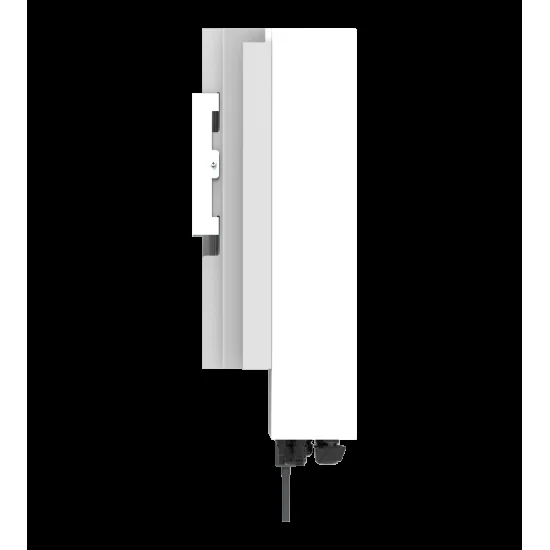

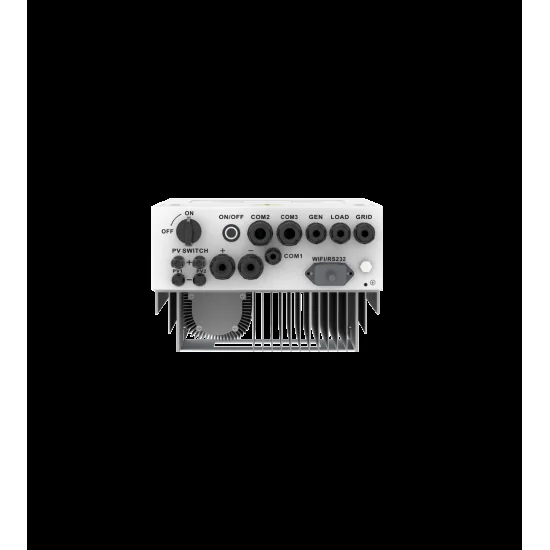

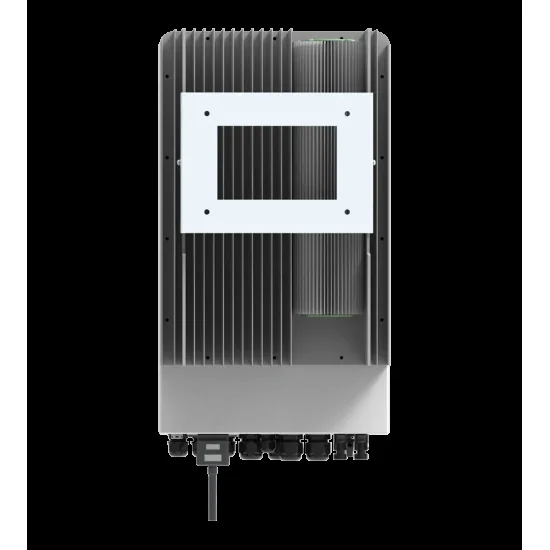

Single-phase hybrid inverter Deye SUN-5K-SG05LP1-EU · 5 kW
5 photosRated power5 kW
ConnectionSingle-phase
TypeHybrid
Description
Inverter Deye, model SUN-5K-SG05LP1-EU. Nominal power 5 kW. Hybrid, single-phase.
Battery voltage: 40 ~ 60 V. Maximum efficiency: 97.60%.
The battery and auxiliary equipment shall be selected separately according to the voltages, protocols and conditions in the model documentation. The reserve function may require additional equipment.
See below the technical data and documents available for size, protection, mounting and operating conditions. The approximate values and the source variants are kept explicitly; the commercial conditions are confirmed in the quotation.
Technical specifications
Identification
- Manufacturer
- Deye
- Model / reference
- SUN-5K-SG05LP1-EU
- Nominal filtering power
- 5 kW Power AC; not photovoltaic field power or extended configuration.
Battery data
- Battery type
- Lead acid or lithium ion
- Battery voltage range
- 40~60V
- Maximum charging current
- 120A
- Maximum discharge current
- 120A
- Loading strategy Li- Ion
- Self-adaptation to BMS
Date intrare PV
- Maximum input power DC
- 6500W
- Rated input voltage PV
- 370V / interval 125V~500V
- Starting voltage
- 125V
- Interval MPPT
- 150~425V
- Entry current PV
- 13A + 13A
- Max. PV ISC
- 17A + 17A
- MPPT / stringuri per MPPT
- 2 / 1+1
Output data AC
- Rated power AC / UPS
- 5000W
- Maximum output power AC
- 5500W
- Rated output current AC
- 22.7A
- Maximum current AC
- 25A
- Passthrough AC maximum continuous
- 35A
- Frequency and output voltage
- 50/60Hz; 220/230/240Vca, single-phase
- Off-grid peak power
- 2 times rated power, 10 seconds
Efficiency and protection
- Maximum efficiency
- 97.60%
- Efficiency MPPT
- 99.90%
- Integrated protections
- Anti-ischemic, reverse polarity PV, insulation, residual current, overflow, short circuit, overvoltage
- Overvoltage protection
- DC Type III / AC Type III
